- Ball Valve Castings
Precision Investment Castings for Industrial Ball Valve Components

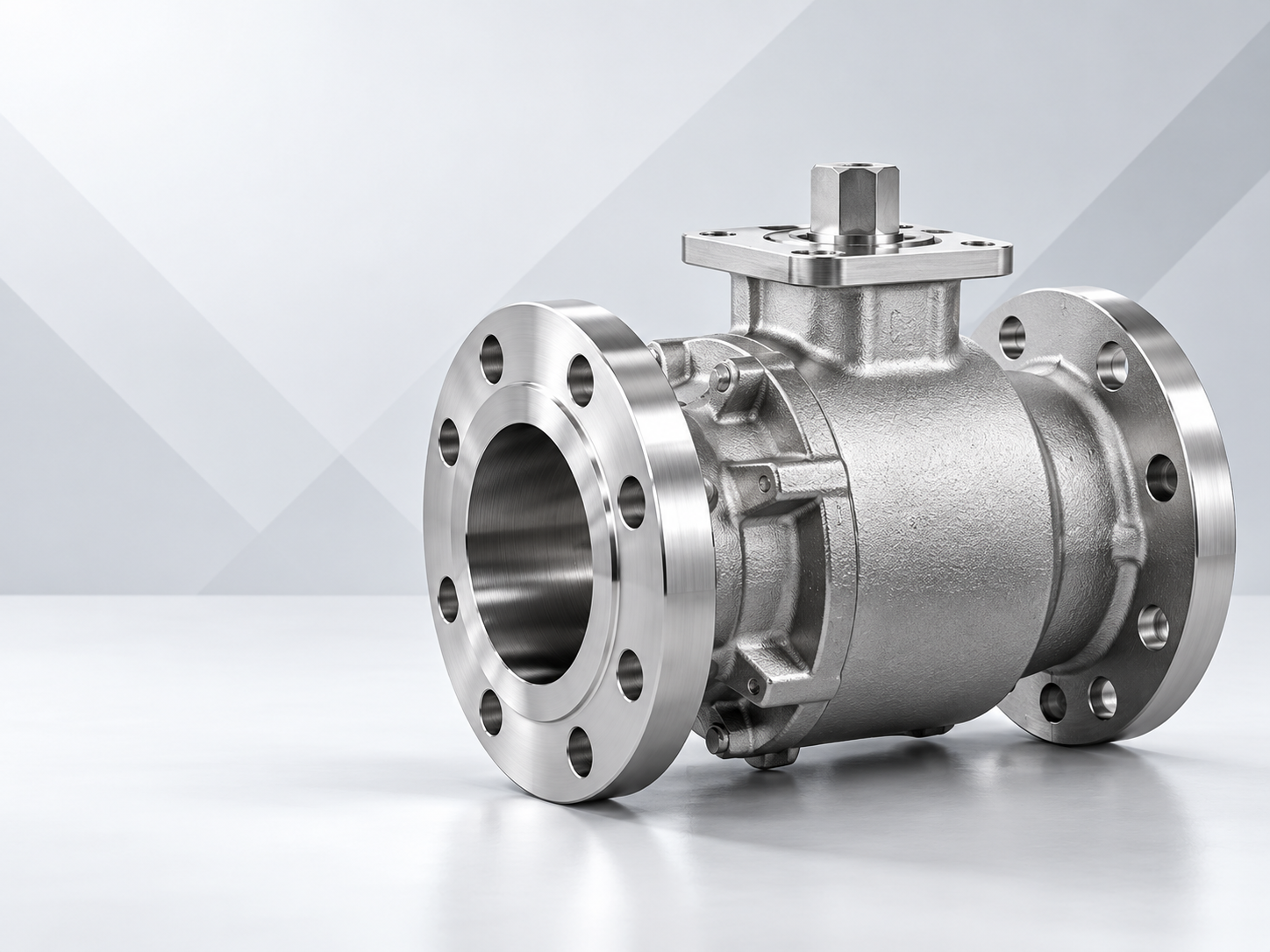

What Is Ball Valve Casting?
Ball valve casting involves producing the metallic structural and pressure-containing components of a valve, such as bodies and end connections. While the quarter-turn operating mechanism is straightforward, the internal passages, sealing interfaces, and mounting points require precise alignment. Investment casting incorporates this detailed geometry directly into the raw component, minimizing CNC machining requirements while ensuring high structural integrity.
Our ball valve investment castings are engineered around customer-defined technical specifications, service media, operating pressures, and temperature requirements. From standard carbon steels to corrosion-resistant stainless steel and duplex alloys, Rainbow Technocast delivers customized casting solutions tailored to demanding industrial flow-control applications.

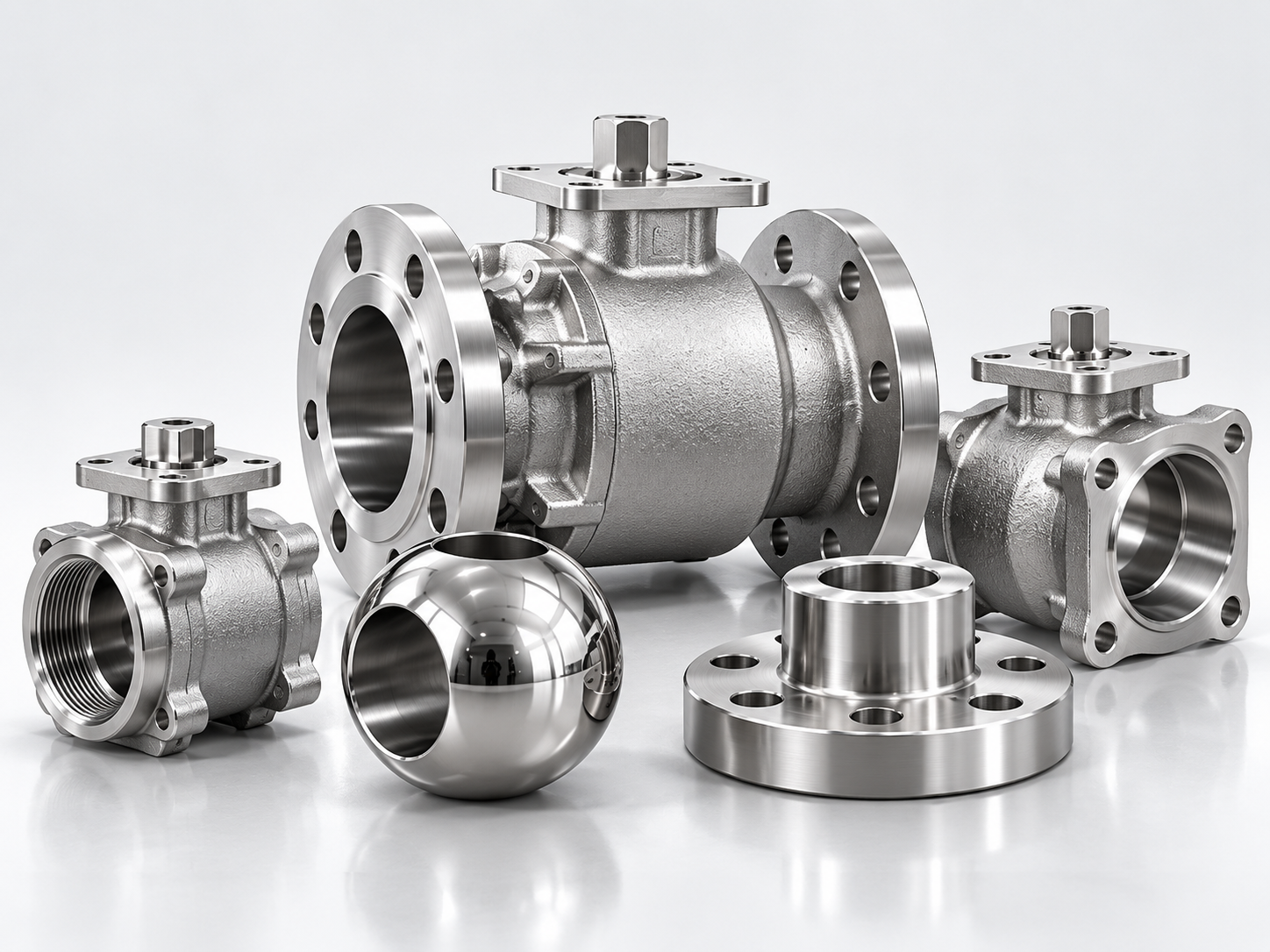

Our Ball Valve Casting Range / Types

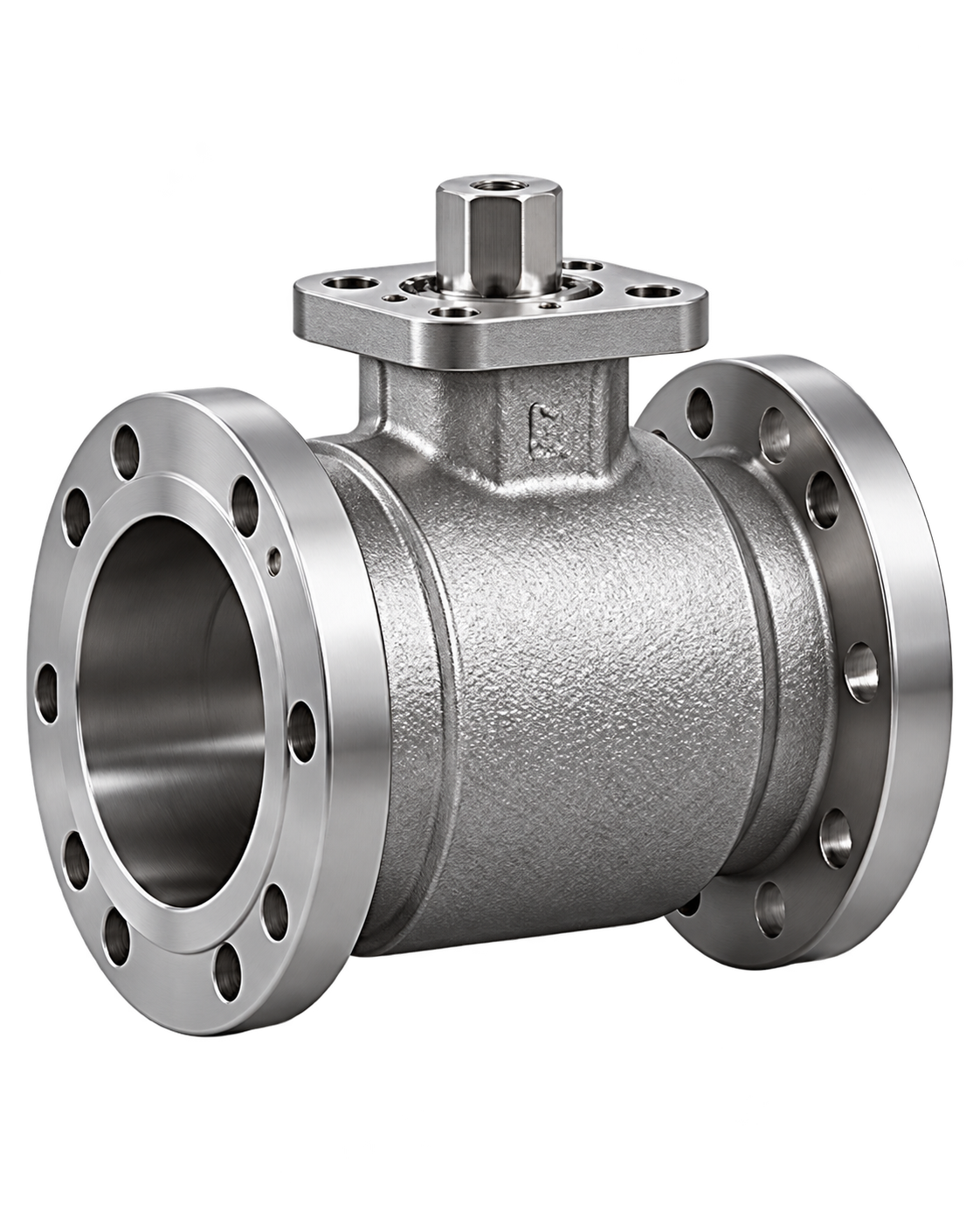

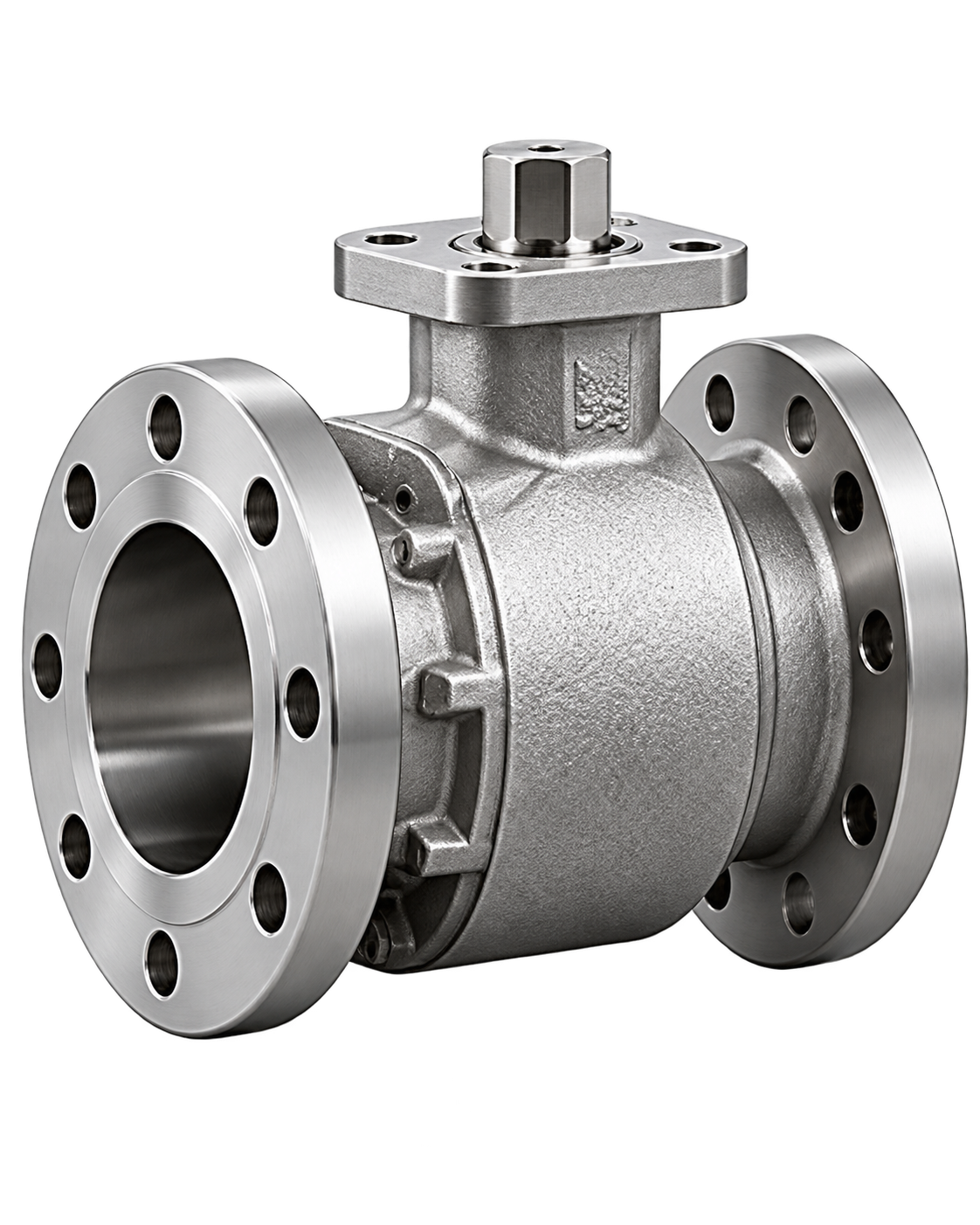

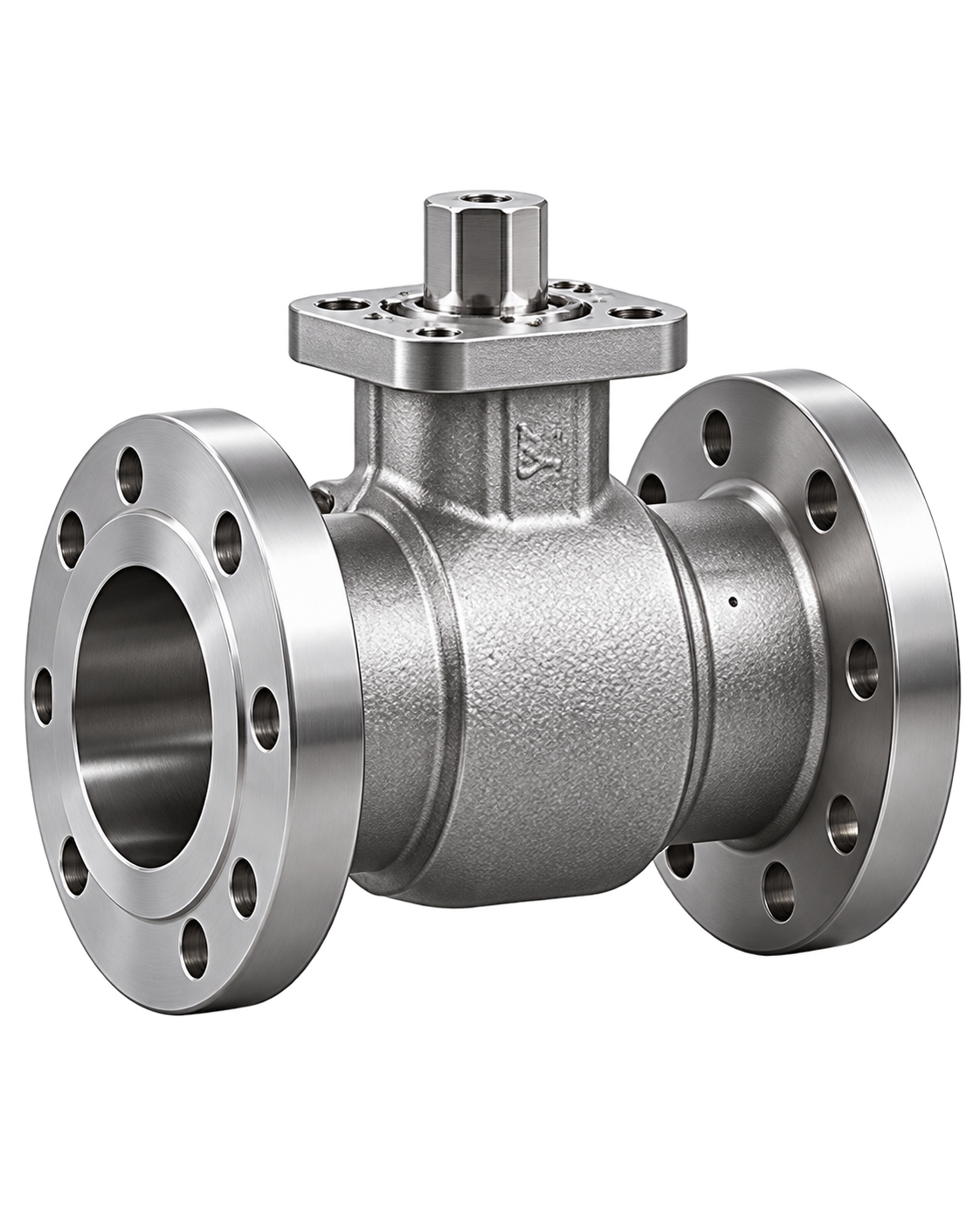

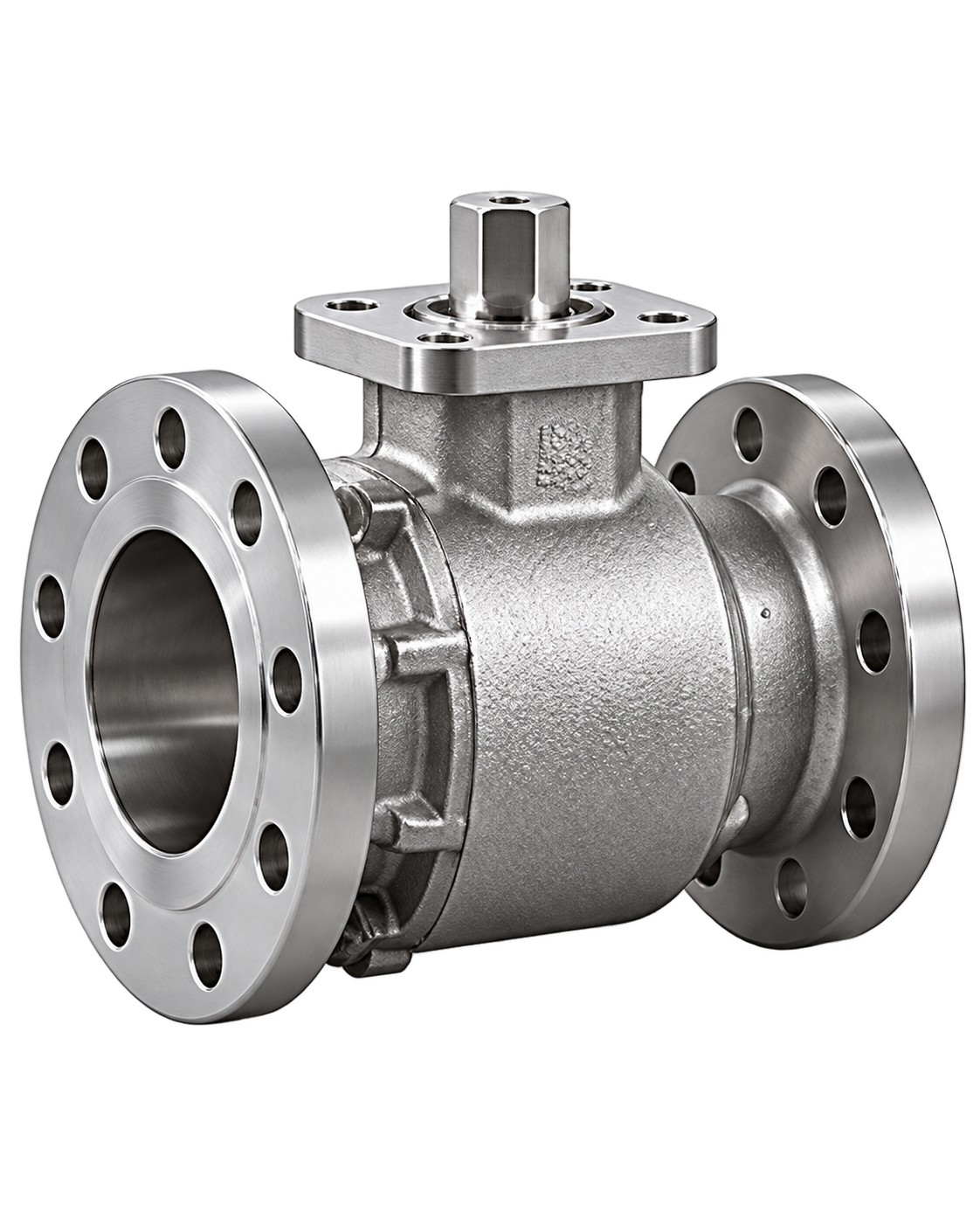

Floating Ball Valve Castings

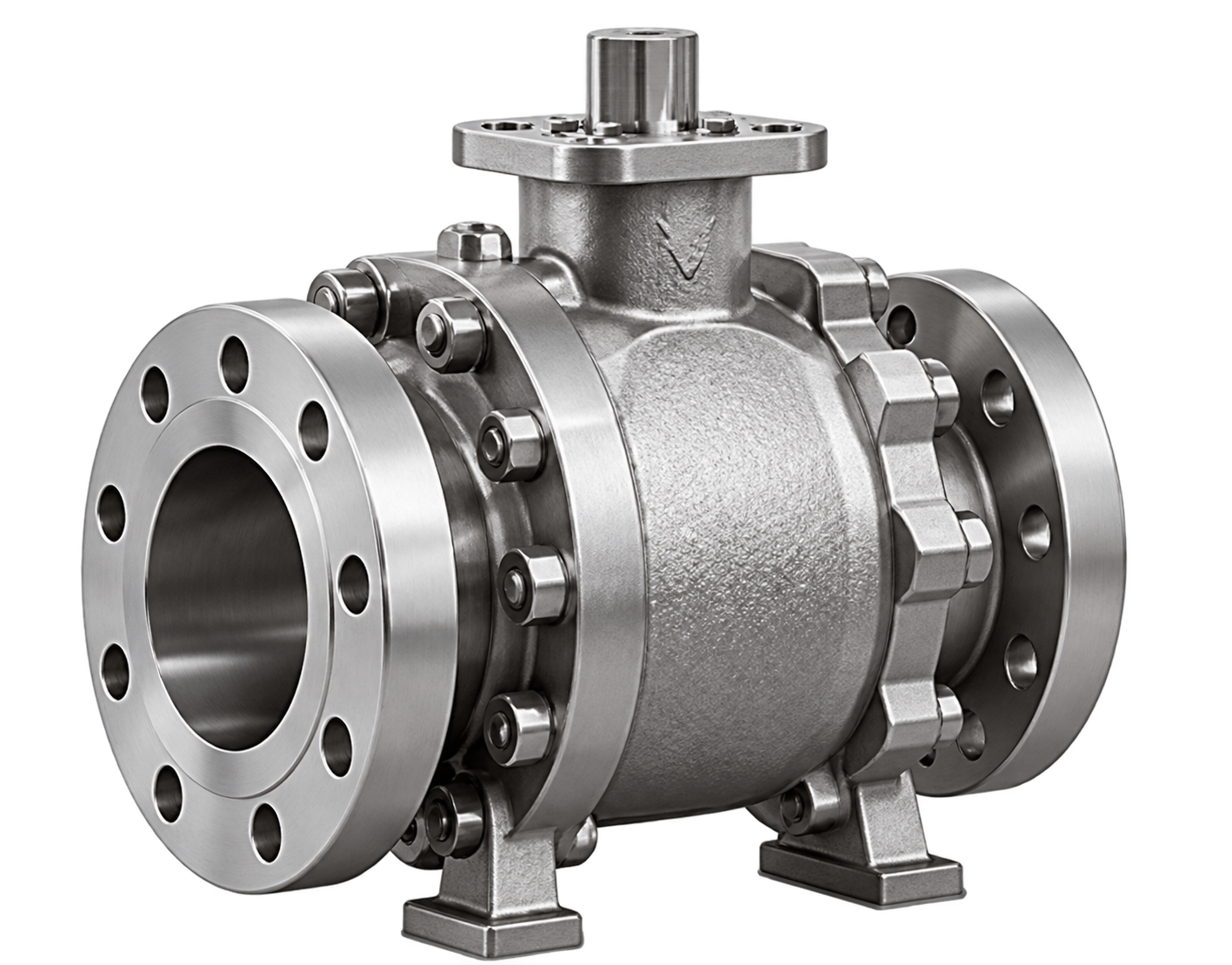

Trunnion Ball Valve Castings
Two-Piece Ball Valve Castings

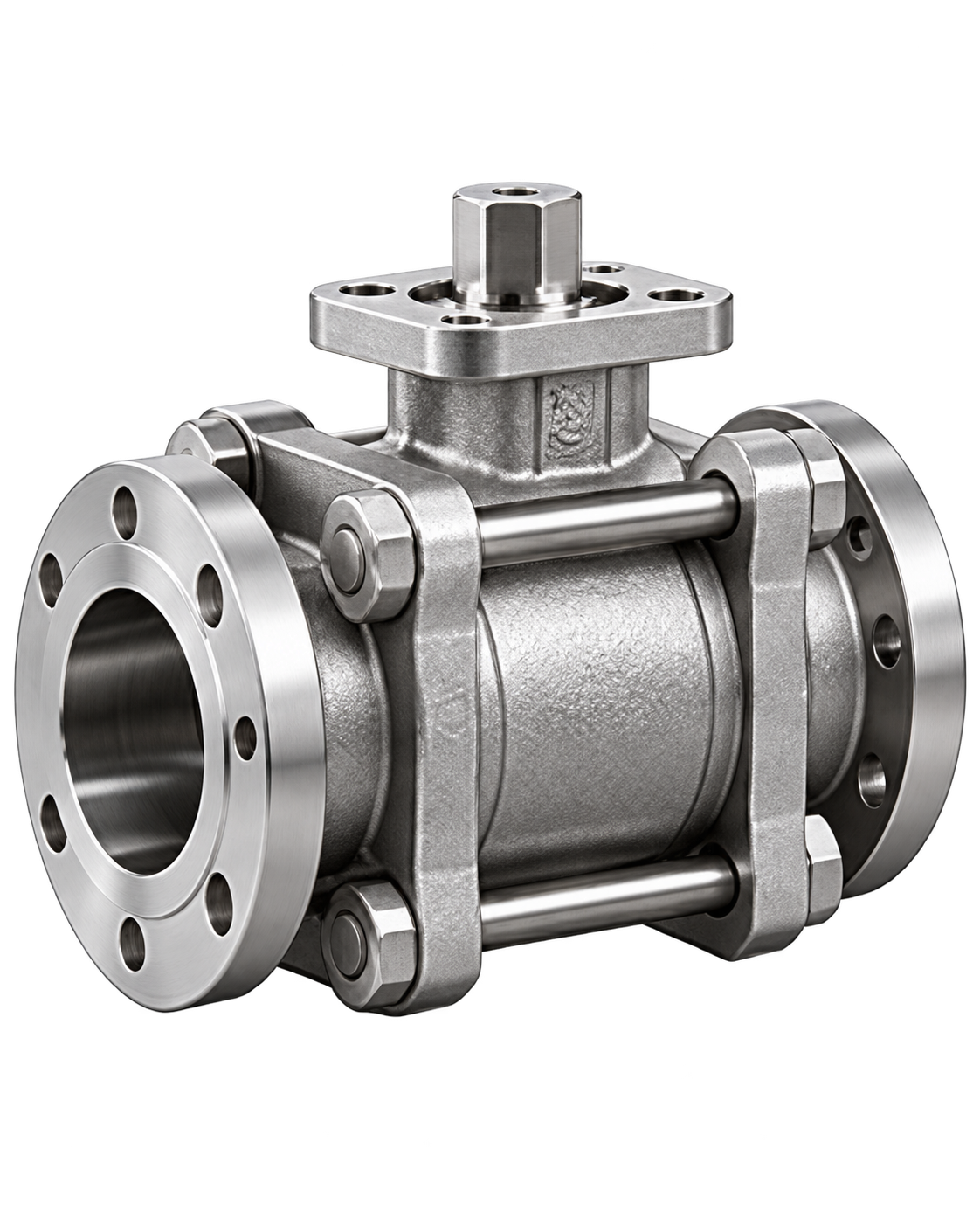

Three-Piece Ball Valve Castings
One-Piece Ball Valve Castings

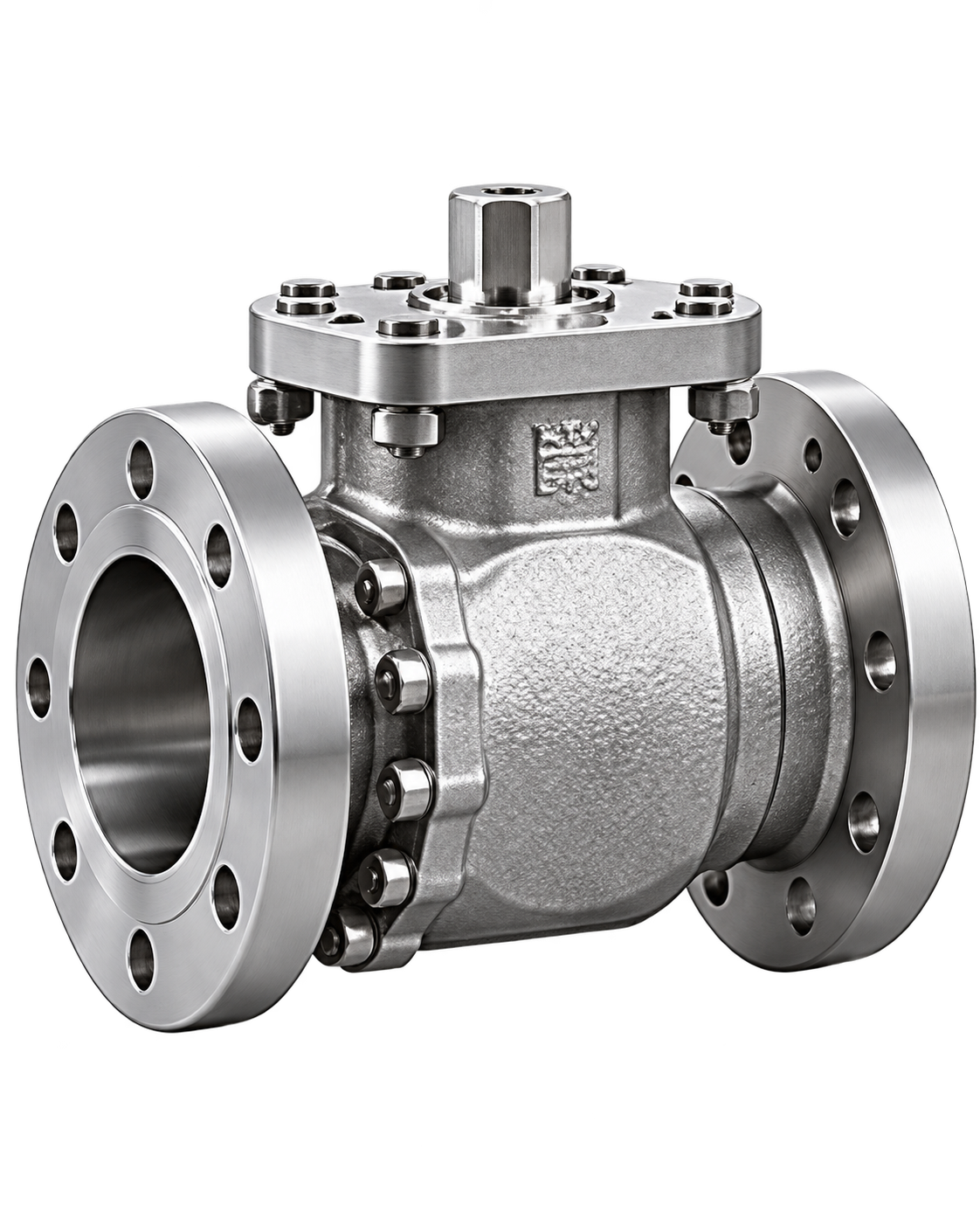

Top-Entry Ball Valve Castings
Side-Entry Ball Valve Castings
Full-Bore Ball Valve Castings
Reduced-Bore Ball Valve Castings

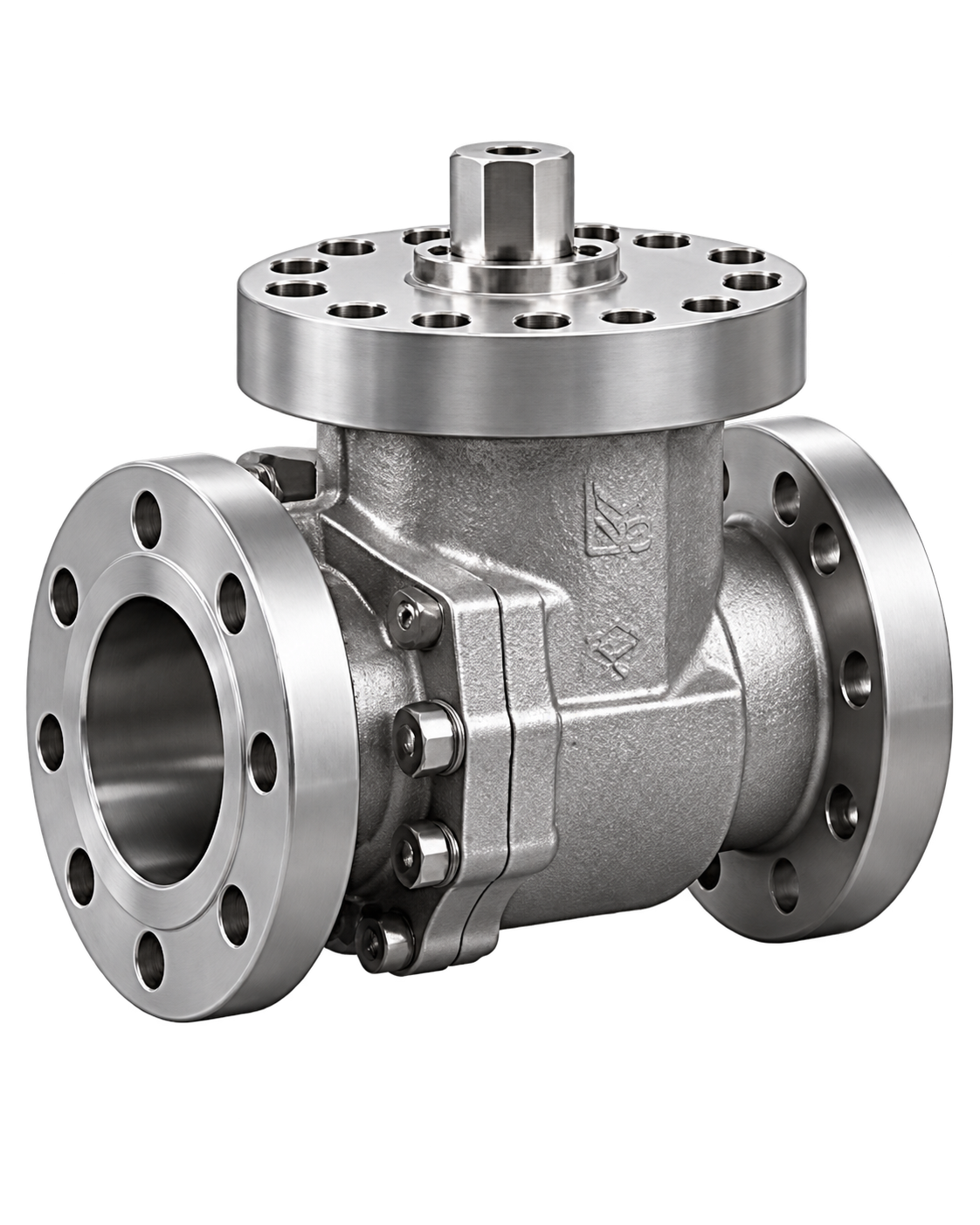

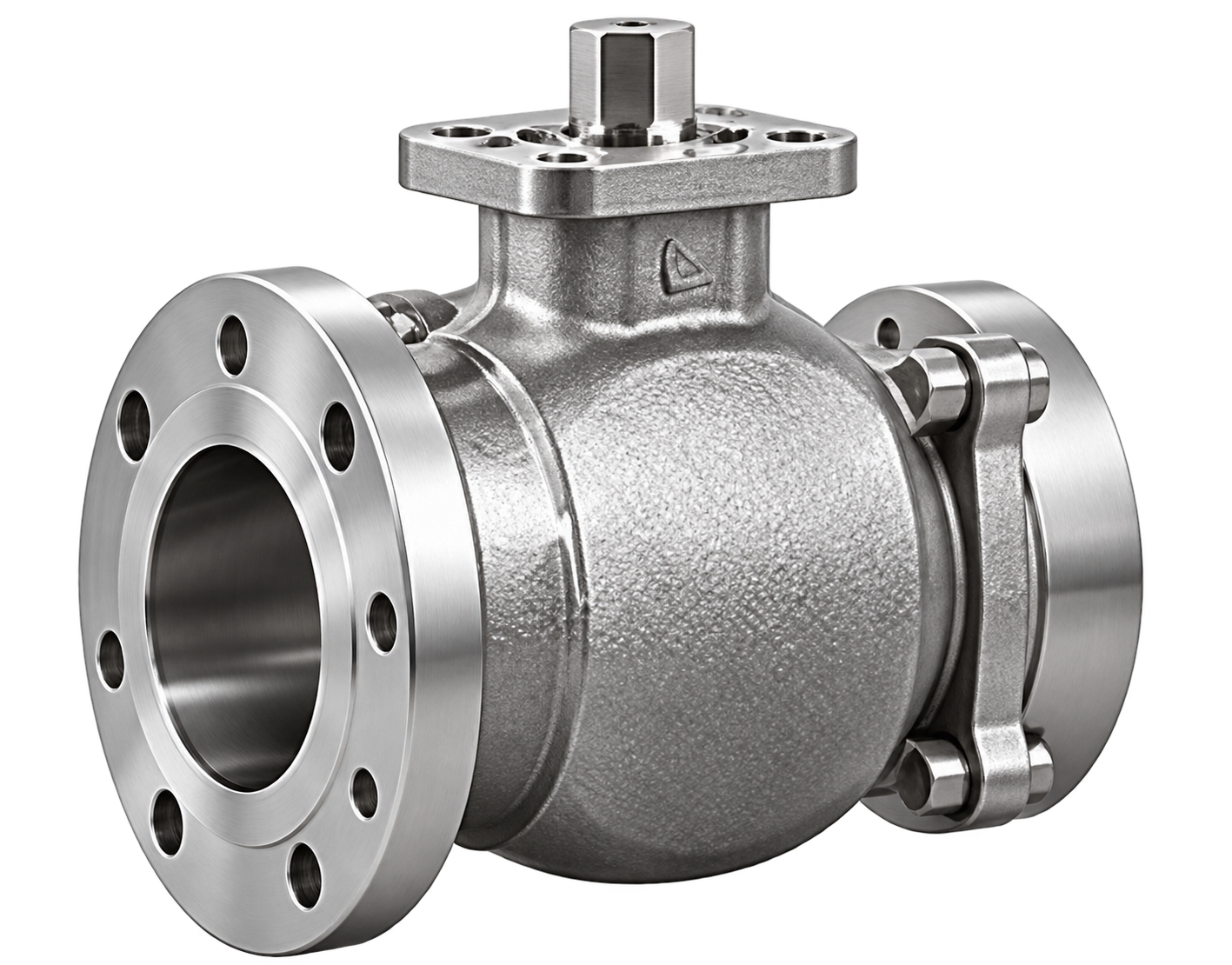

Flanged Ball Valve Castings

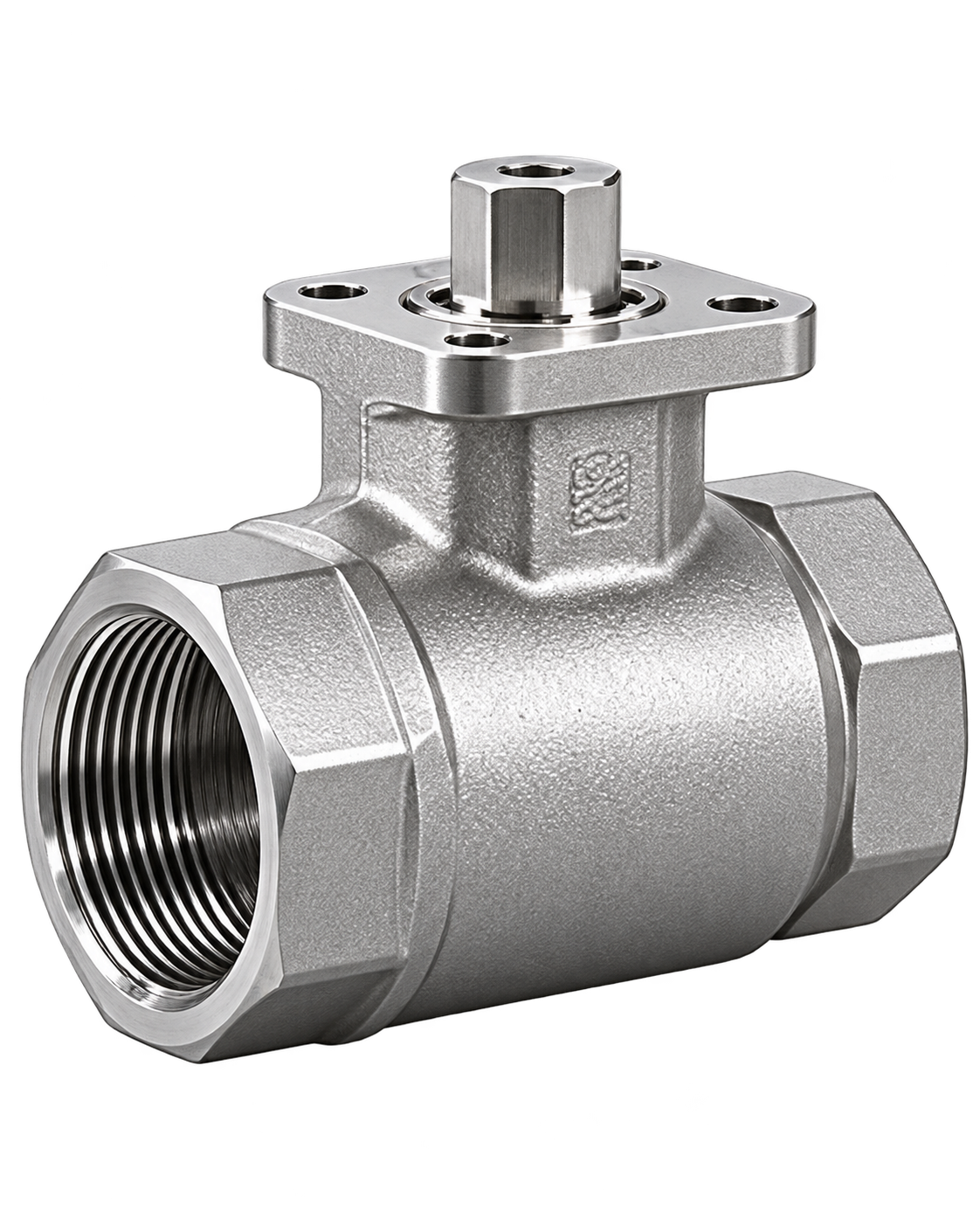

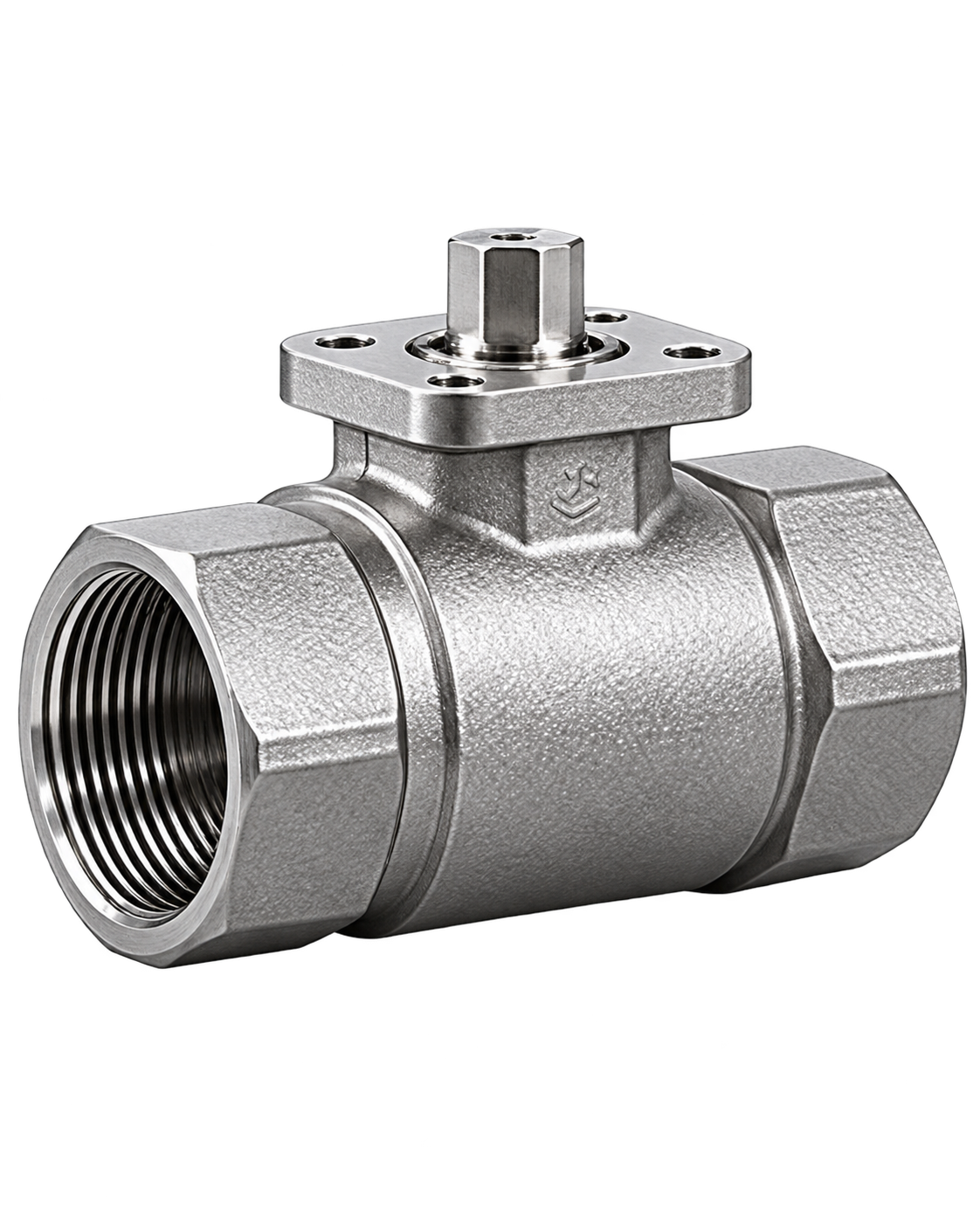

Threaded Ball Valve Castings

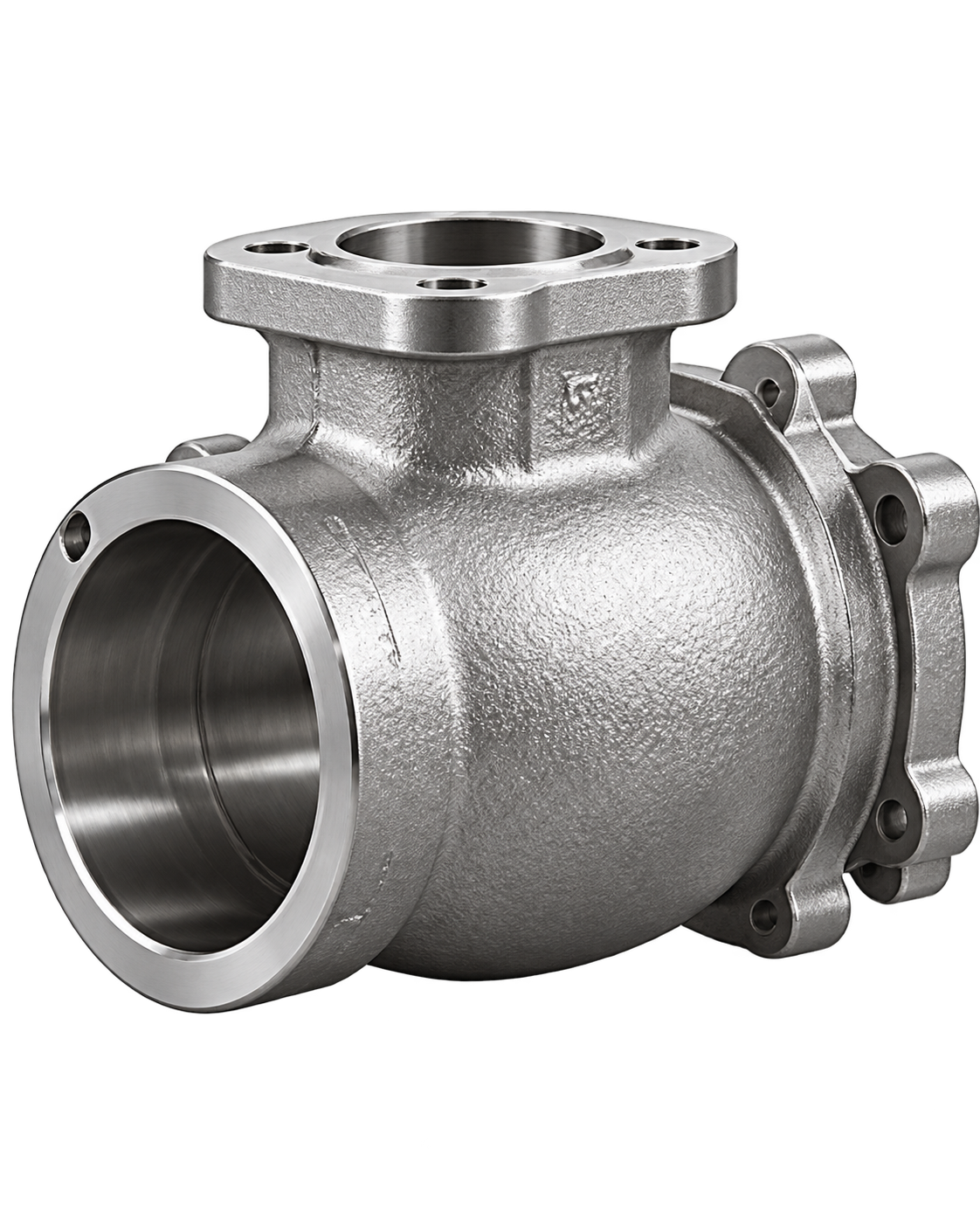

Ball Valve Body Castings

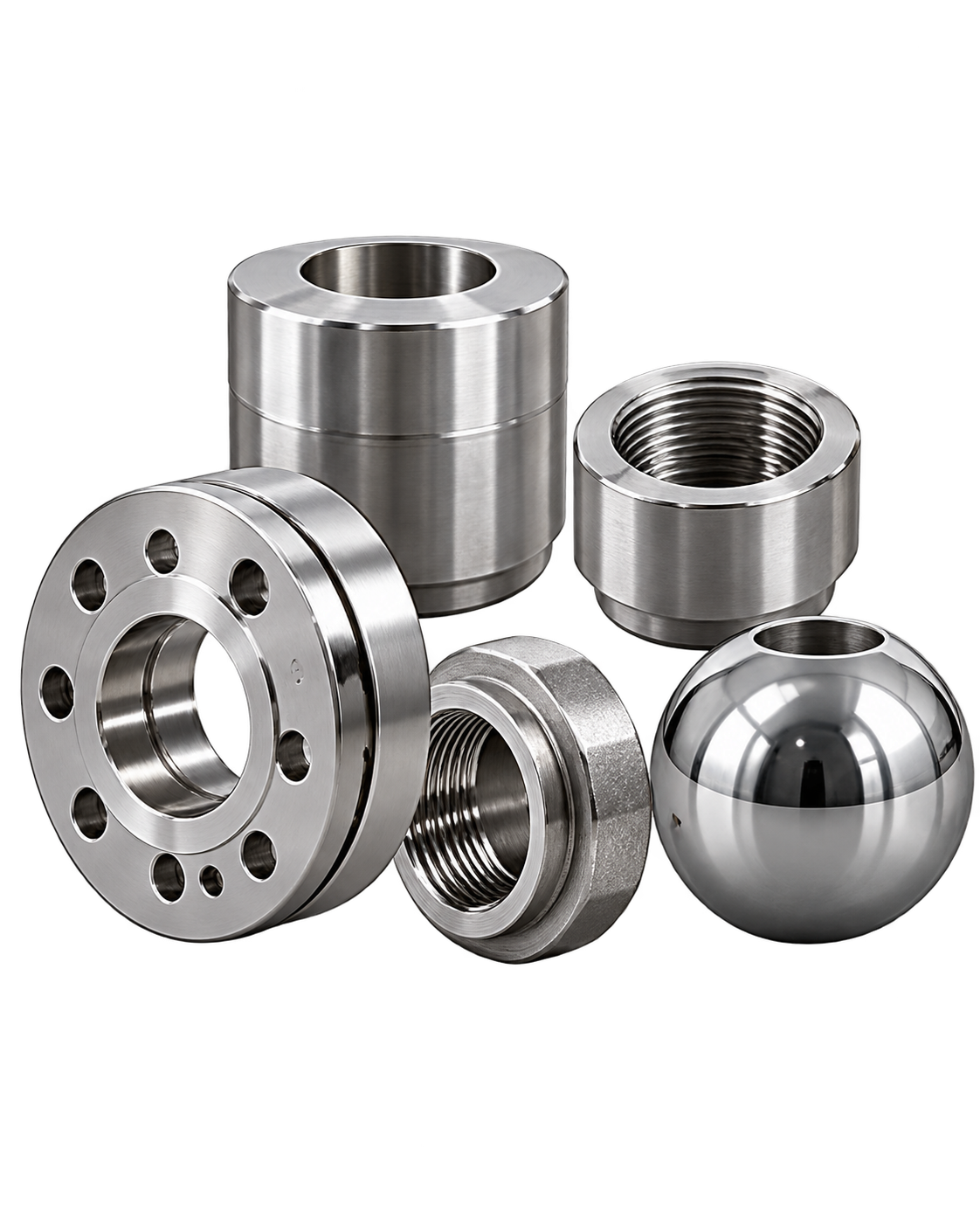

Ball Valve End-Connection Castings

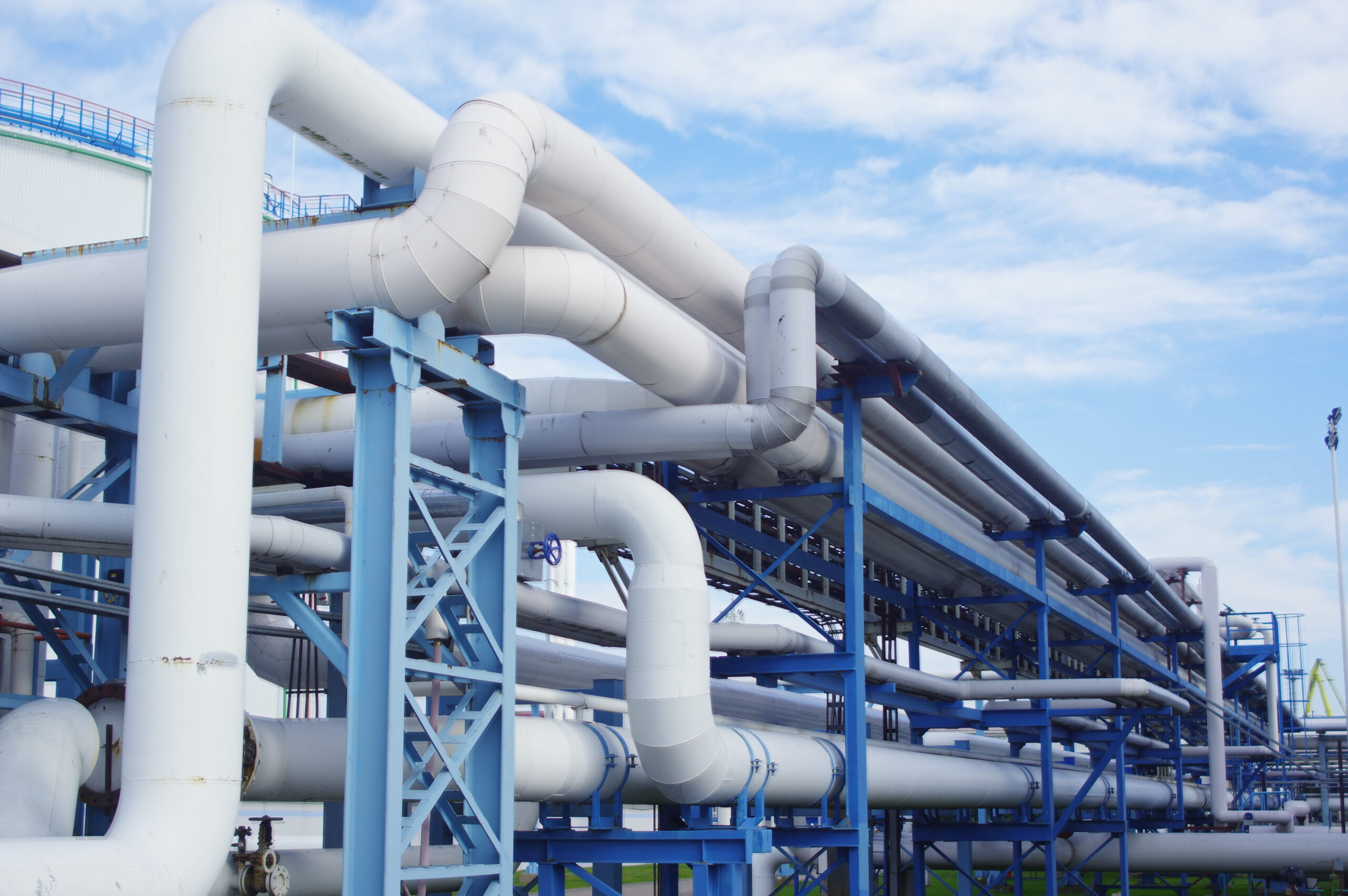

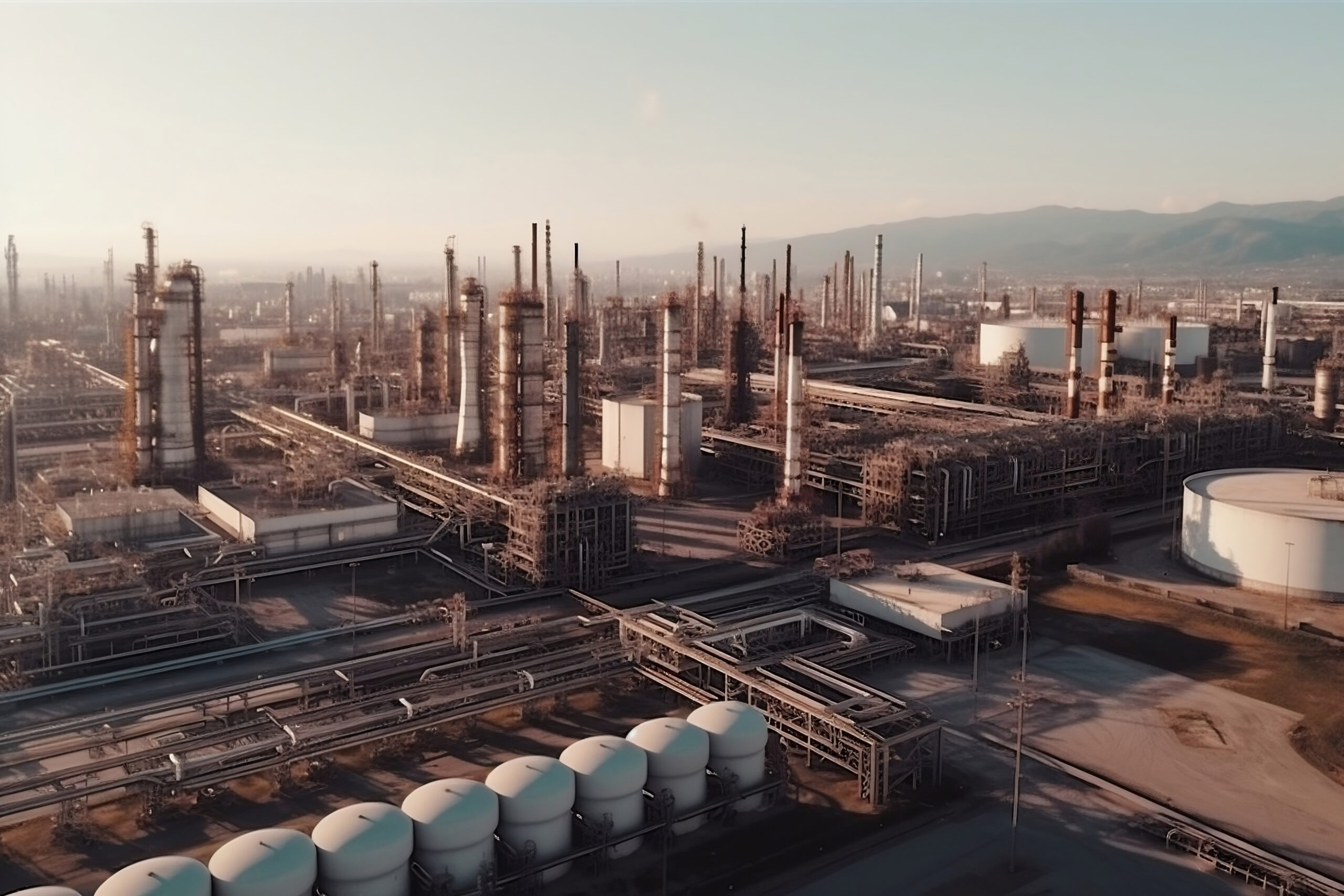

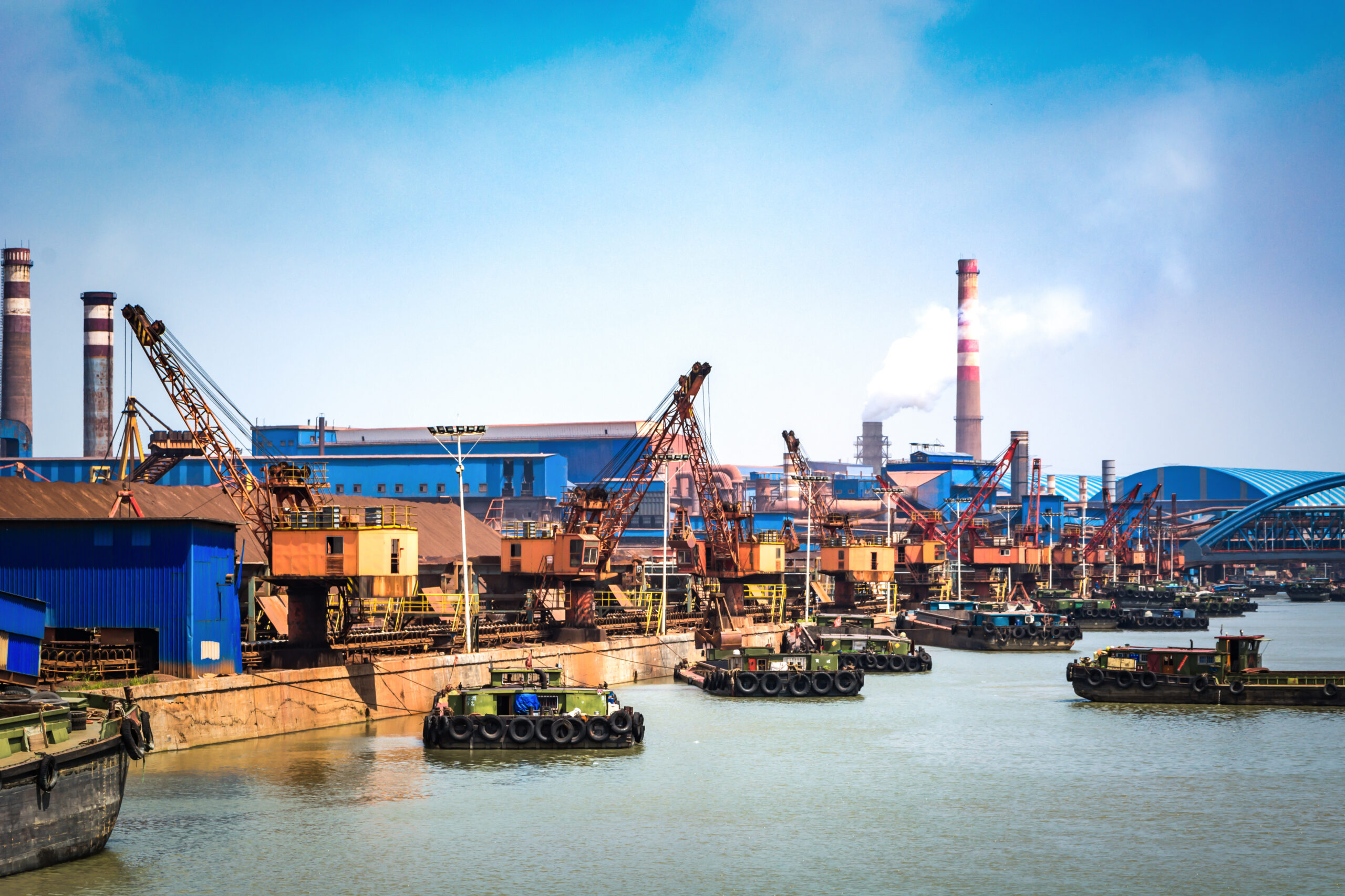

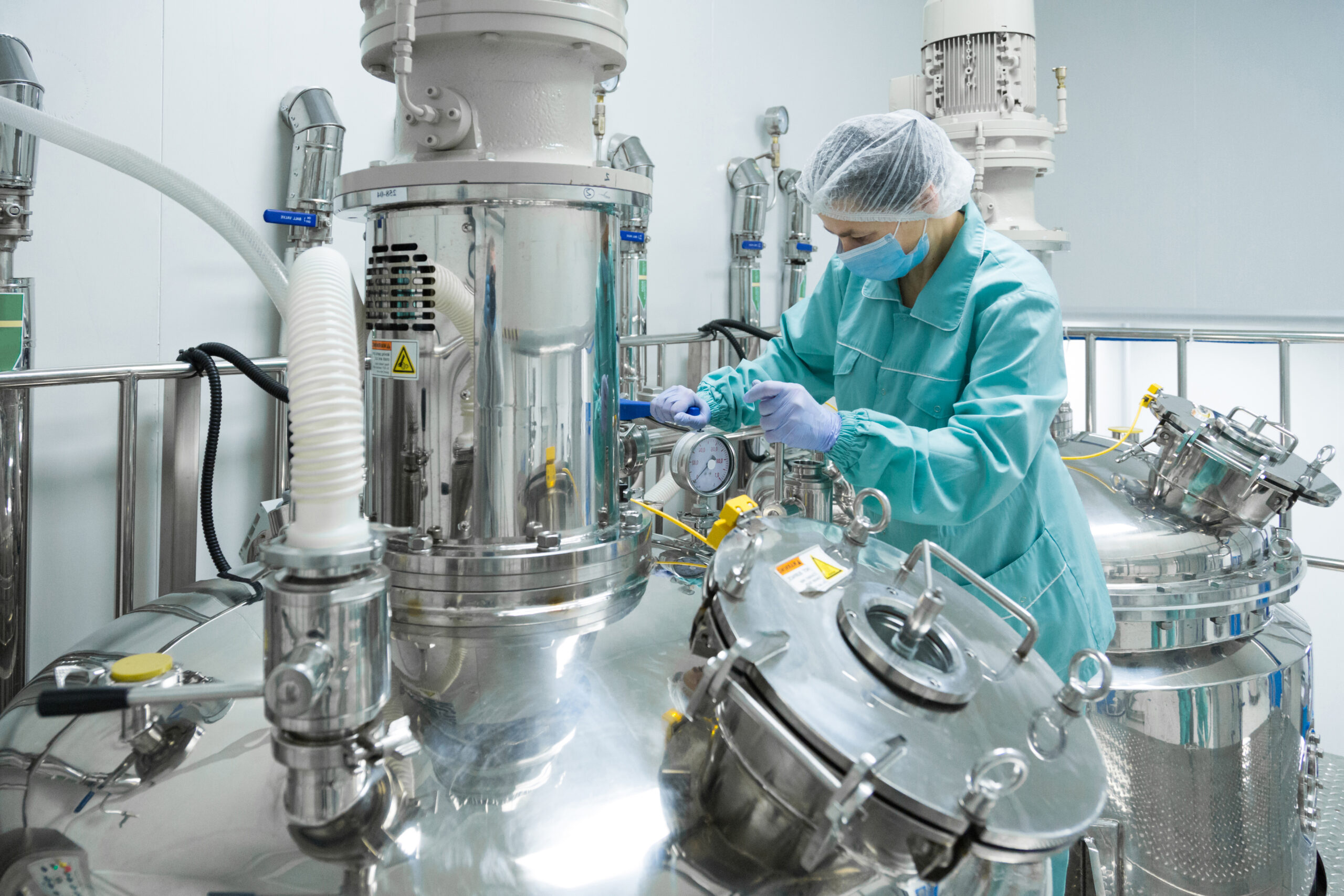

Industries We Serve with Butterfly Valve Castings
Why Investment Casting for Ball Valve Components?
Ball valve bodies require intricate internal and external features, including pressure-containing cavities, mounting pads, and flow passages. Investment casting forms these detailed geometries directly from a wax pattern, significantly reducing the material removal and machine setups needed during final CNC finishing.
Furthermore, investment casting supports a wide array of specialized engineering alloys, making it ideal for high-temperature and corrosive process media. By focusing precision machining solely on critical seating surfaces and threads, valve manufacturers achieve enhanced material utilization and overall cost efficiency.
OurBall Valve Casting
Manufacturing Process
- Drawing & Technical Review
- Tooling Design & Die Manufacturing
- Wax Pattern Production & Assembly
- Ceramic Shell Building & Drying
- Dewaxing & Shell Firing
- Induction Melting & Spectrometric Analysis
- Metal Pouring & Solidification
- Shell Knockout & Casting Cut-Off
- Fettling & Grinding
- Heat Treatment & Surface Cleaning
- Precision Machining
- Dimensional & NDT Final Inspection
Why Choose Rainbow Technocast as Your Ball Valve Casting Manufacturer?
Integrated
Facilities
Three foundries and two machining shops deliver end-to-end production with total quality control.
Advanced Testing Capabilities
In-house chemical spectrometry, mechanical verification, and NDT ensure reliable, leak-free ball valve performance.
Repeatable
Precision
Strict process alignment guarantees high consistency across ongoing high-volume manufacturing batches.
Tailored
Engineering
Customized casting and finishing tailored specifically to demanding global flow-control requirements
Frequently Asked Questions
What types of ball valve castings does Rainbow Technocast manufacture?
The company can evaluate cast components for floating, trunnion, multi-piece, flanged and other ball valve constructions. The final manufacturing scope depends on the customer’s component drawing, alloy, dimensions, weight and technical requirements.
Can stainless steel ball valve bodies be investment cast?
Yes. Stainless steels are widely suited to investment casting, subject to grade and component requirements. Rainbow Technocast lists multiple austenitic stainless-steel grades as well as duplex, super-duplex and corrosion-resistant alloy capabilities.
Does investment casting eliminate machining?
Not necessarily. Investment casting can significantly reduce the amount of machining required by producing a component closer to its final geometry. Critical sealing surfaces, threads, bores and tight-tolerance dimensions are normally machined where required.
Can you provide machined ball valve components?
Rainbow Technocast has in-house machining shops. Customers can submit finished-component drawings together with casting specifications so that machining allowances and final dimensional requirements can be planned from the development stage.
What information is required for a quotation?
A drawing or 3D model, material specification, component weight or dimensions, annual or batch quantity, machining scope, inspection requirements and applicable industry standards will help the team evaluate the project accurately.
Request a Quote for Ball Valve Castings
Looking for an investment casting partner for a new or existing ball valve component?
Send us your technical drawing, required material, quantity, machining scope and inspection requirements.
Rainbow Technocast can review the component and develop a manufacturing route around your application.
