- Gate, Globe & Check Valve Castings
Investment Castings for Industrial Flow-Control Components
What Are Gate, Globe & Check Valve Castings?
Gate, globe, and check valves perform distinct flow-control functions, yet all require robust pressure-retaining components with reliable geometry. Gate valves isolate flow, globe valves regulate it, and check valves prevent reverse flow. Each function demands unique internal architecture, such as specific gate channels, directional flow paths, or internal closure cavities.
Investment casting creates these internal forms near net shape, making it ideal for small to medium-sized precision components with intricate passages. Rainbow Technocast develops castings from customer drawings to optimize material usage and ensure seamless downstream machining across carbon, stainless, duplex, and nickel alloys.
Our Gate, Globe & Check Valve Casting Range / Types

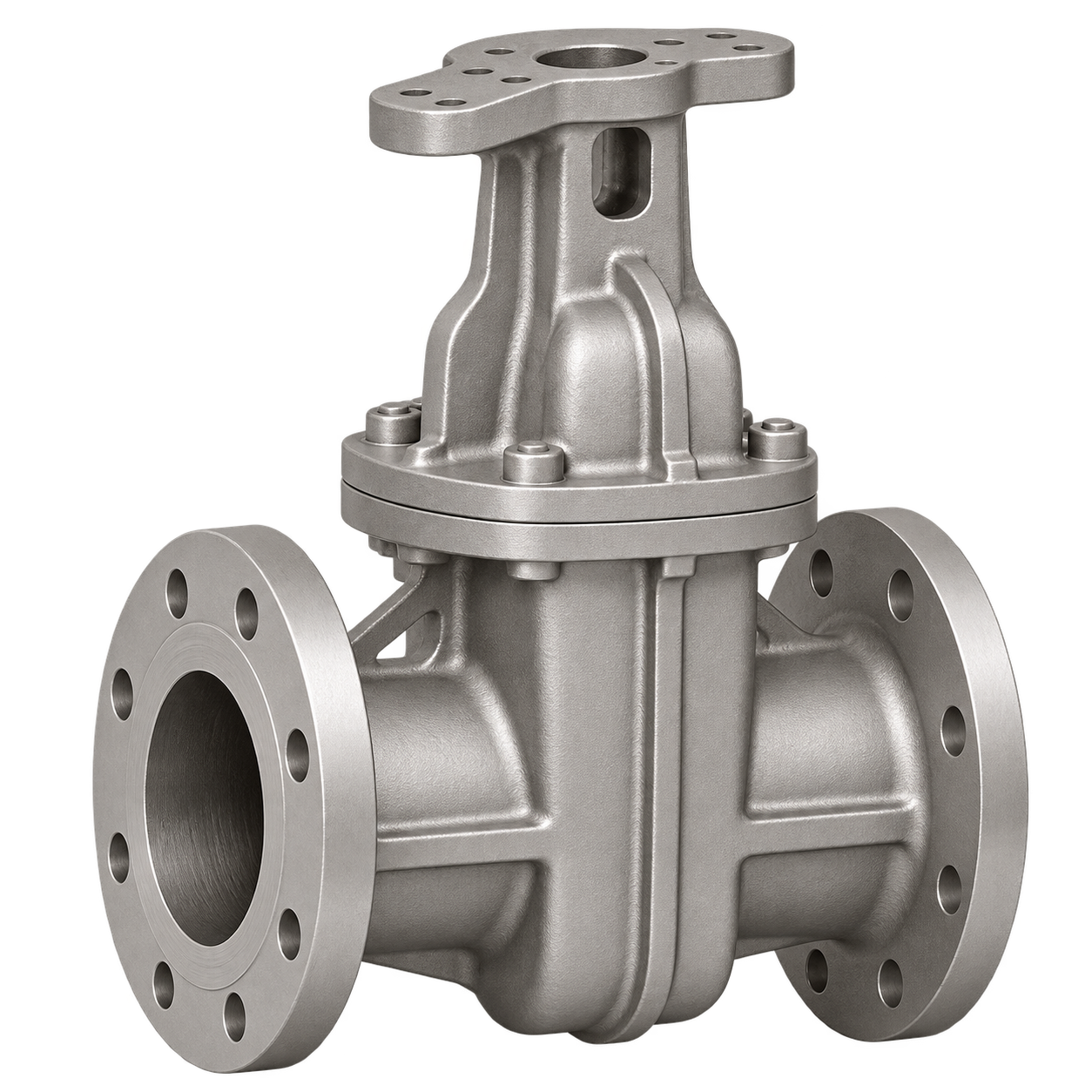

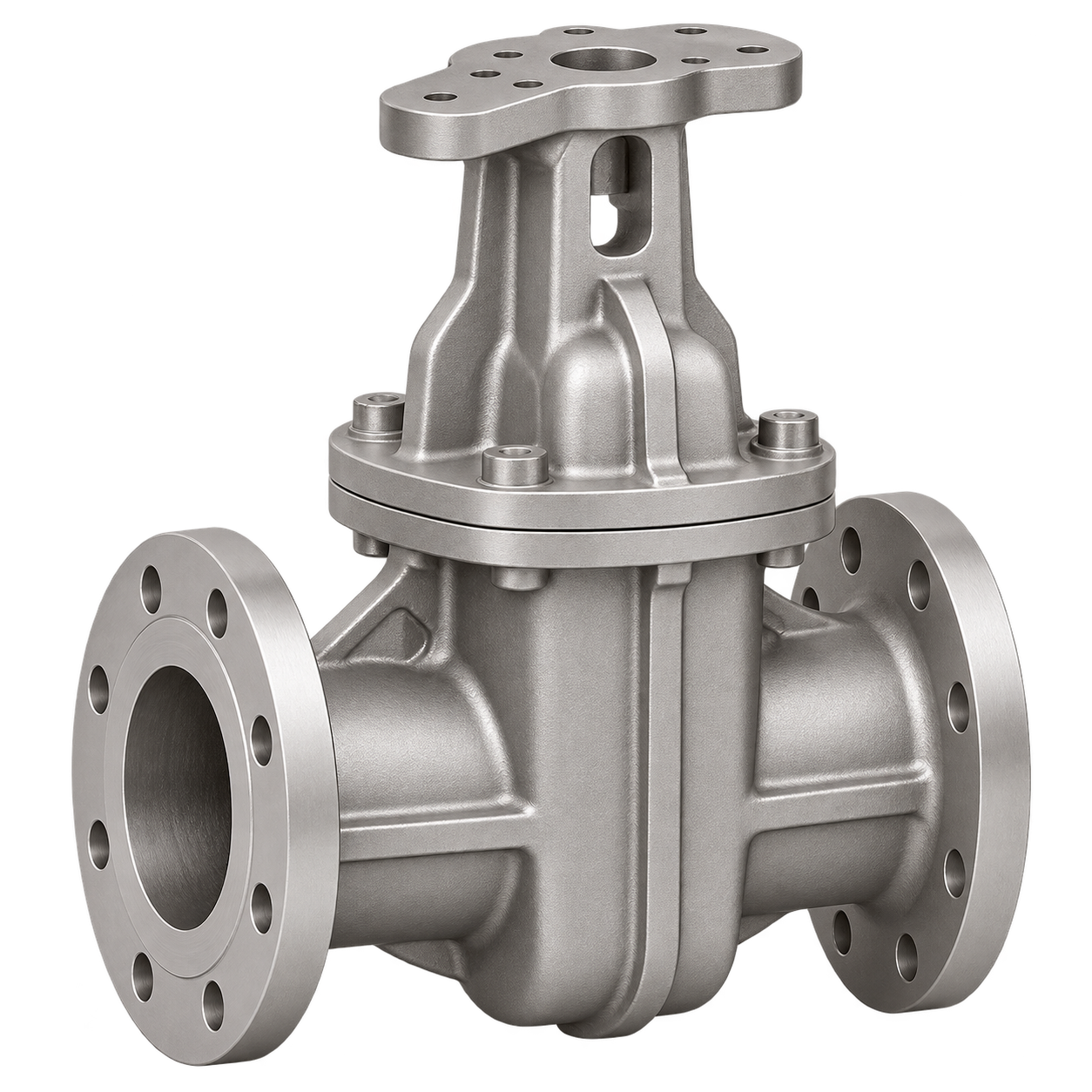

Gate Valve Body Castings

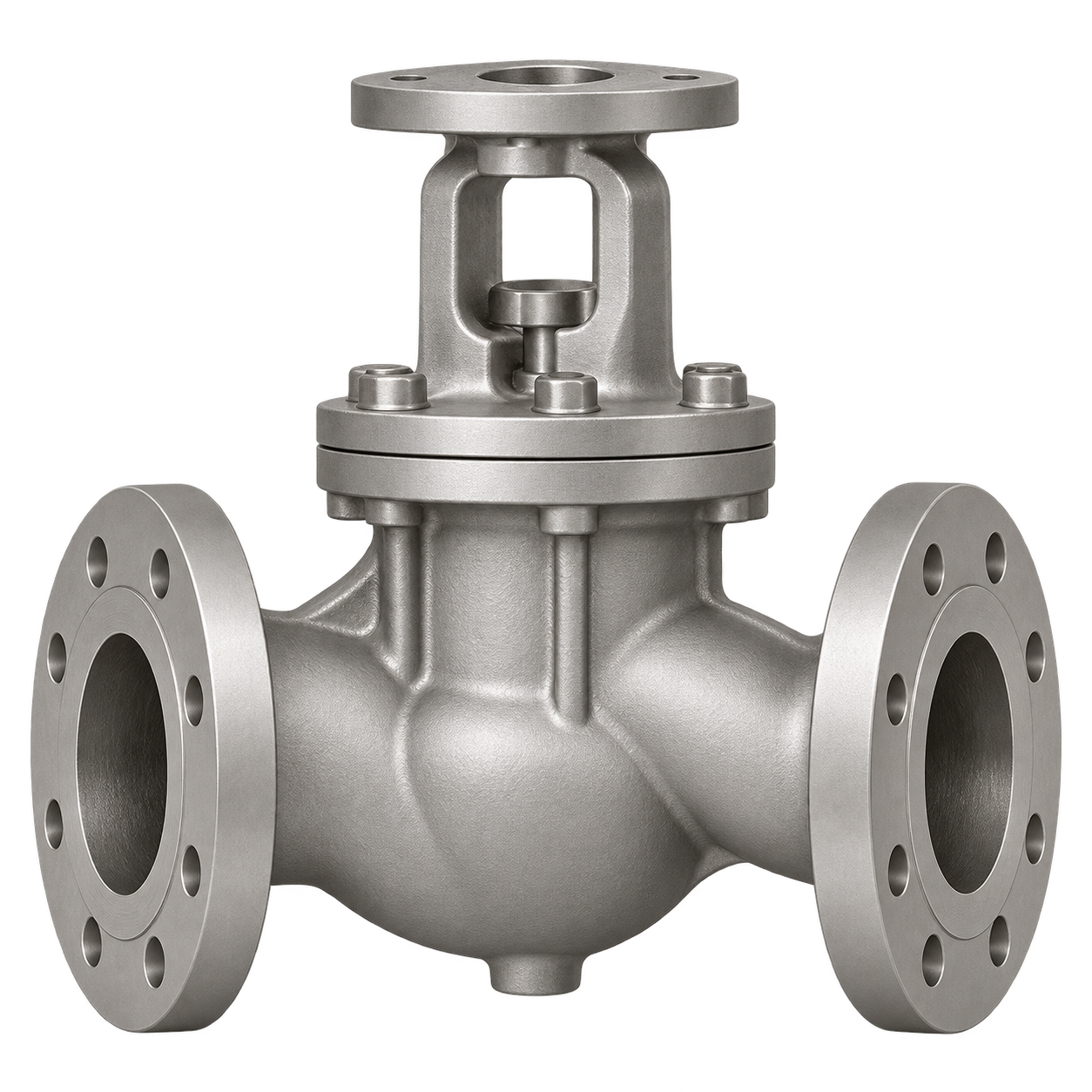

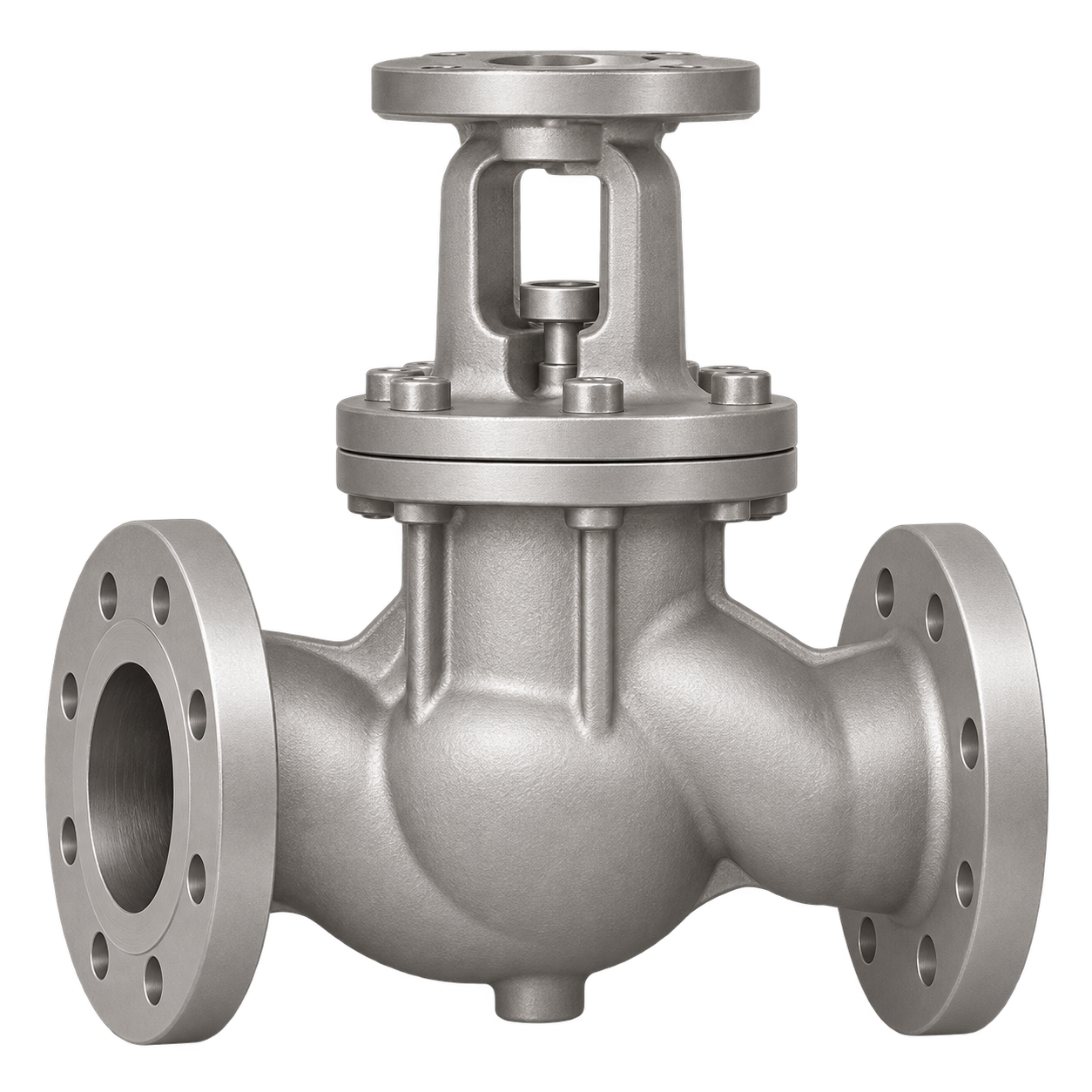

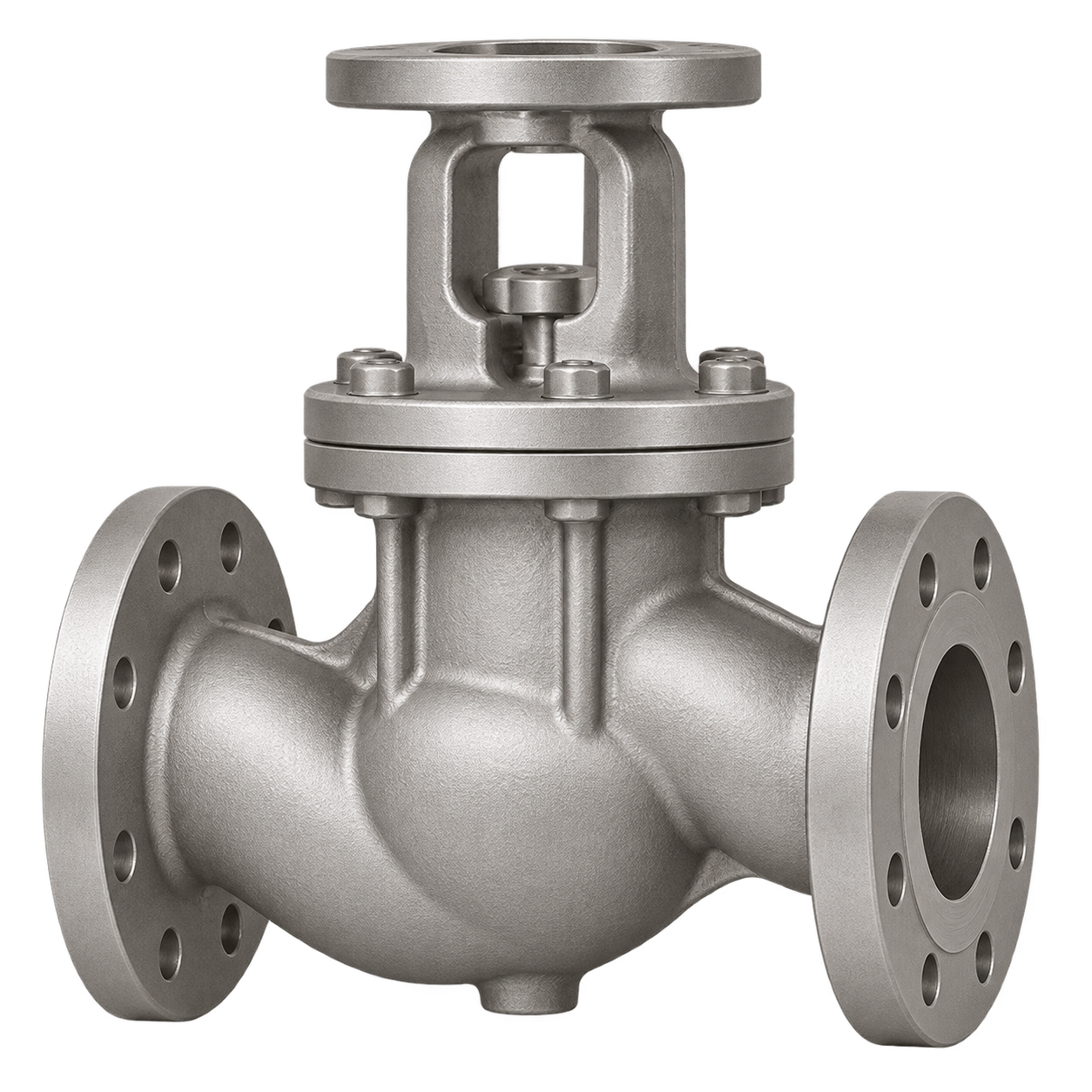

Globe Valve Body Castings

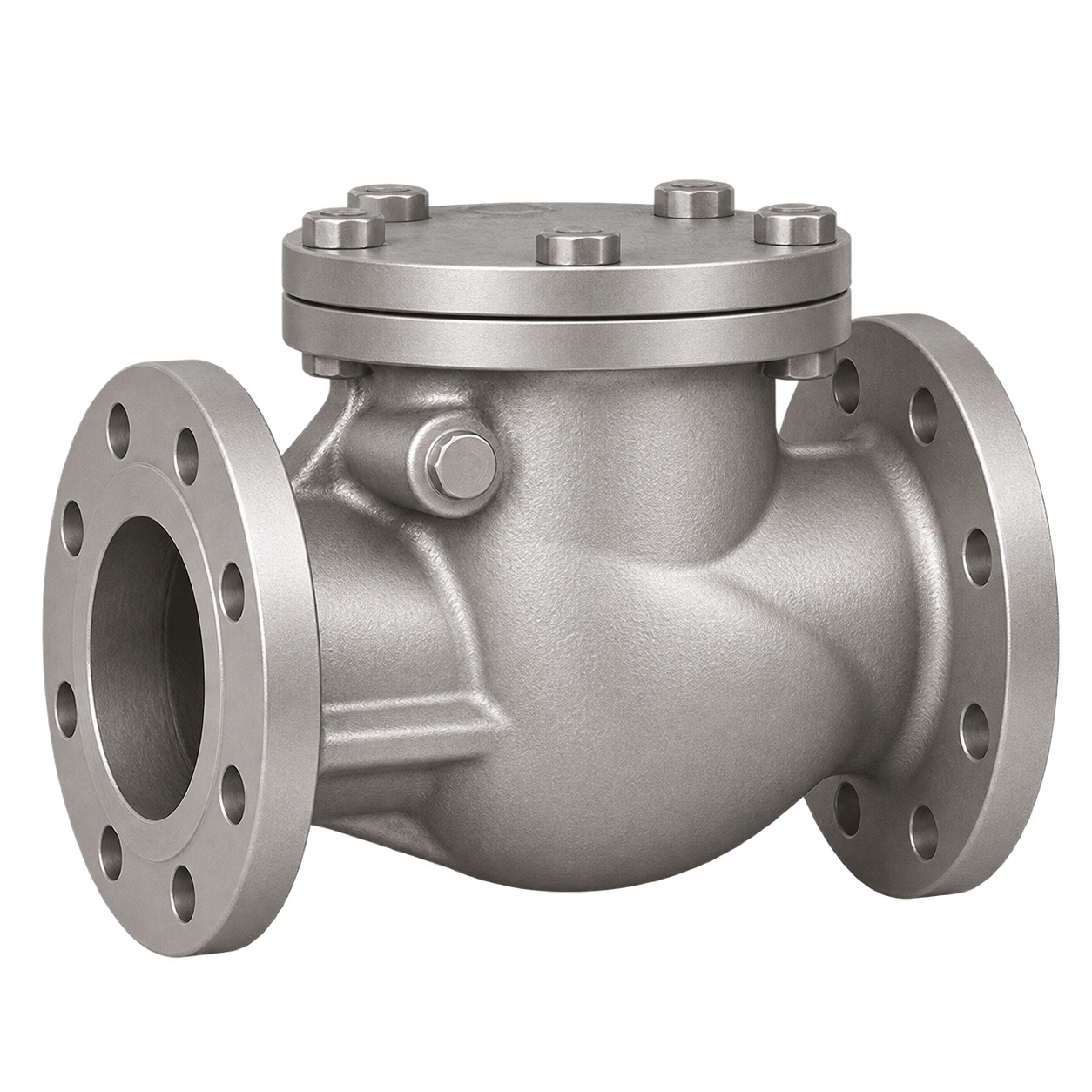

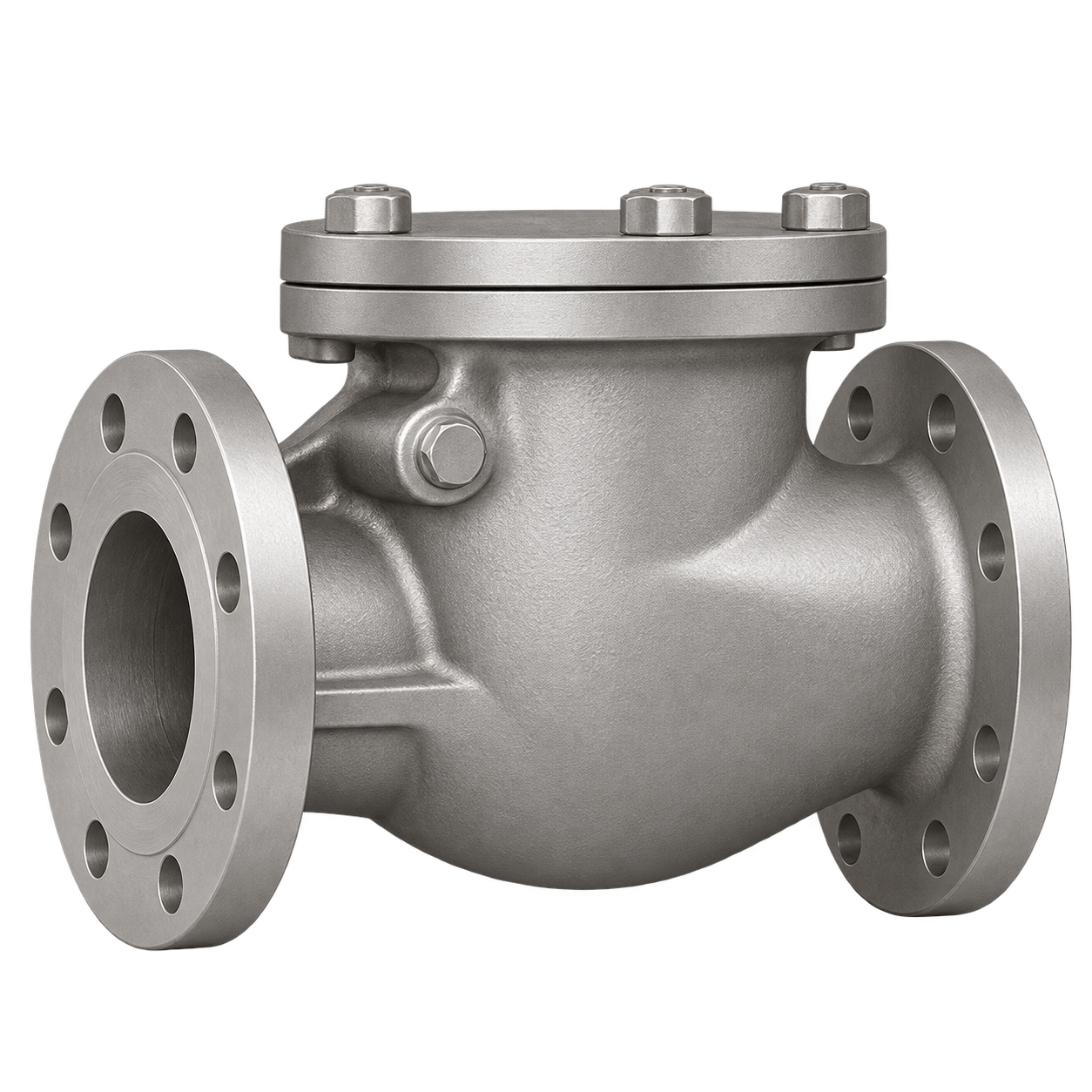

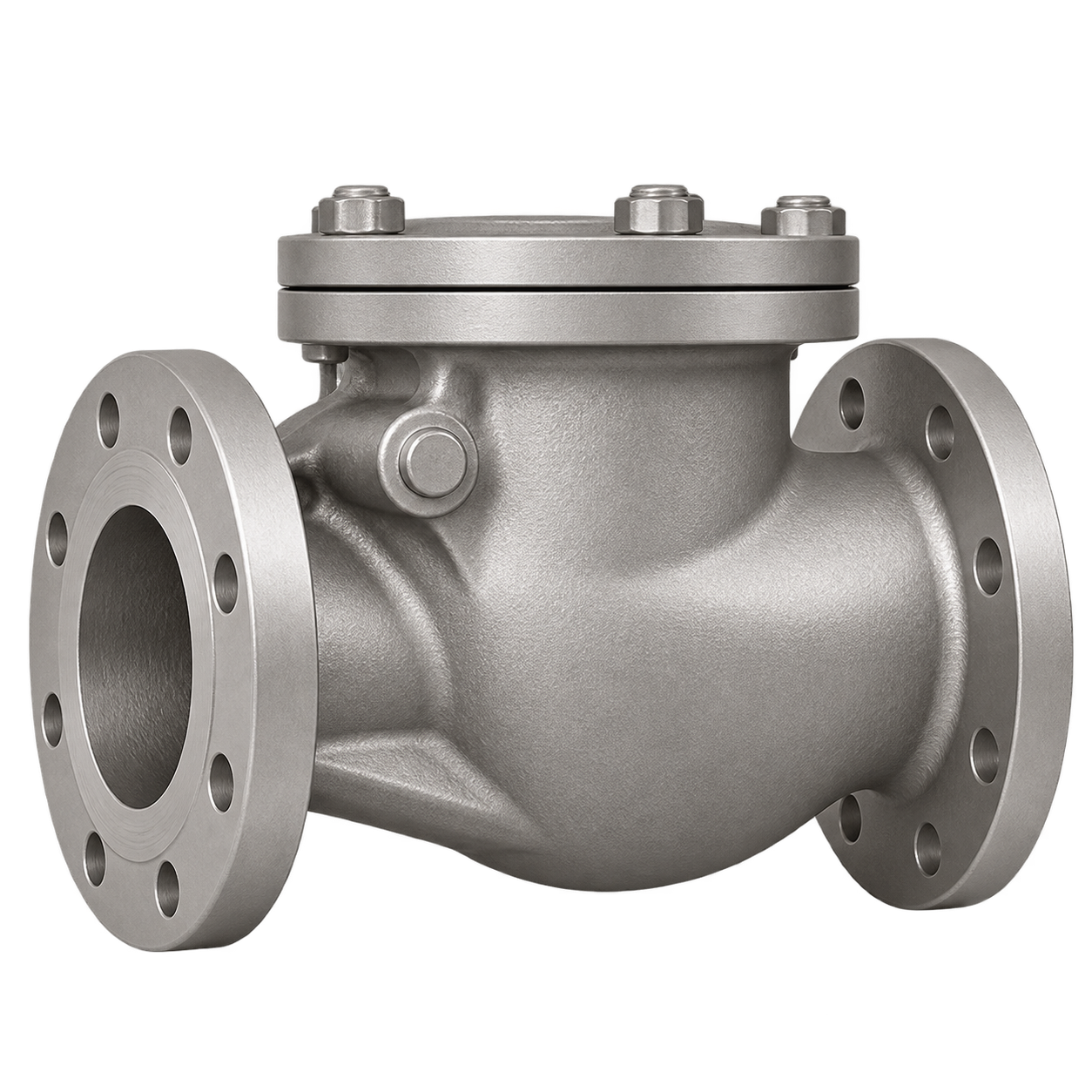

Swing Check Valve Castings

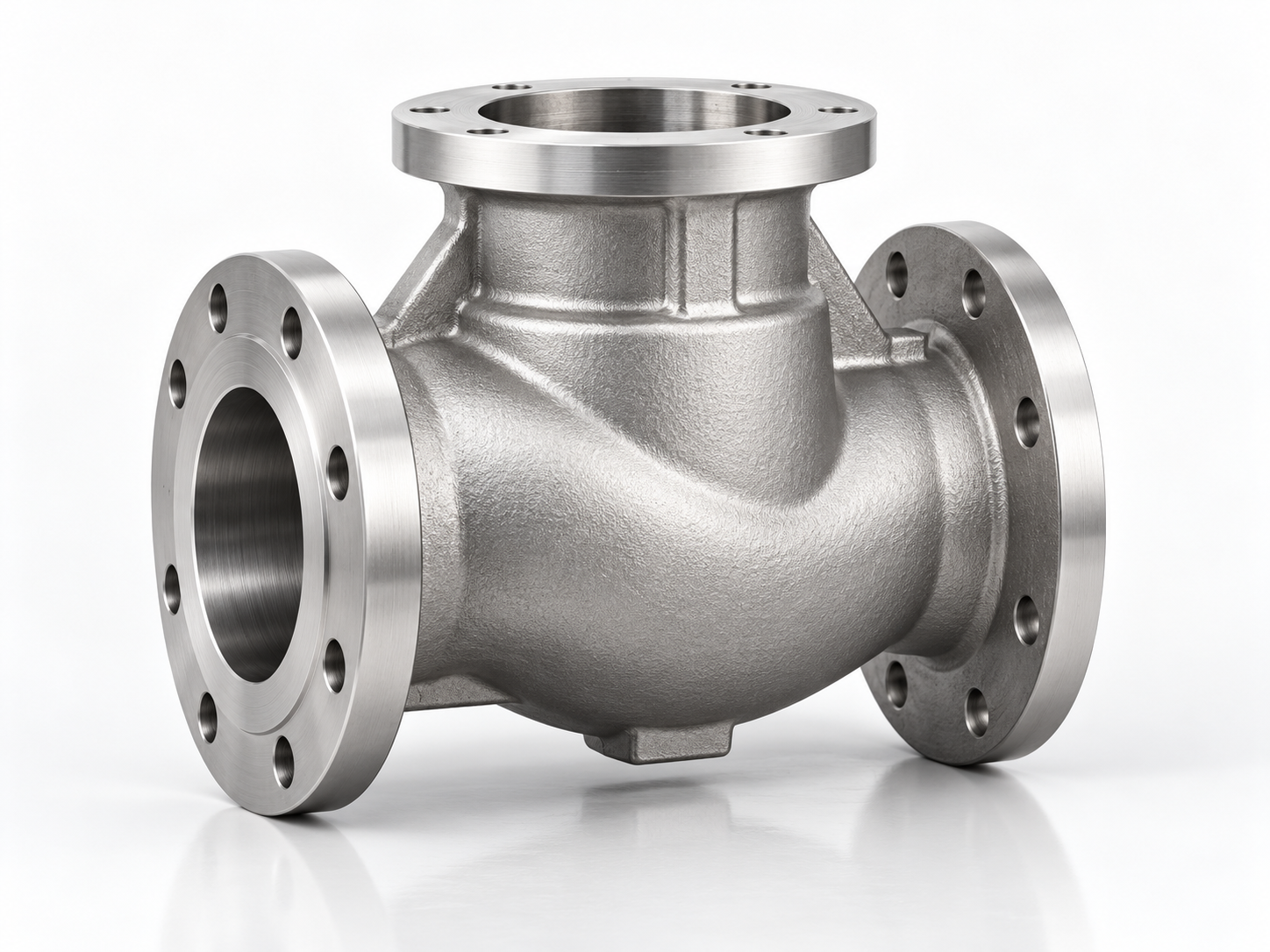

Lift Check Valve Castings
Tilting Disc Check Valve Castings
Piston Check Valve Castings

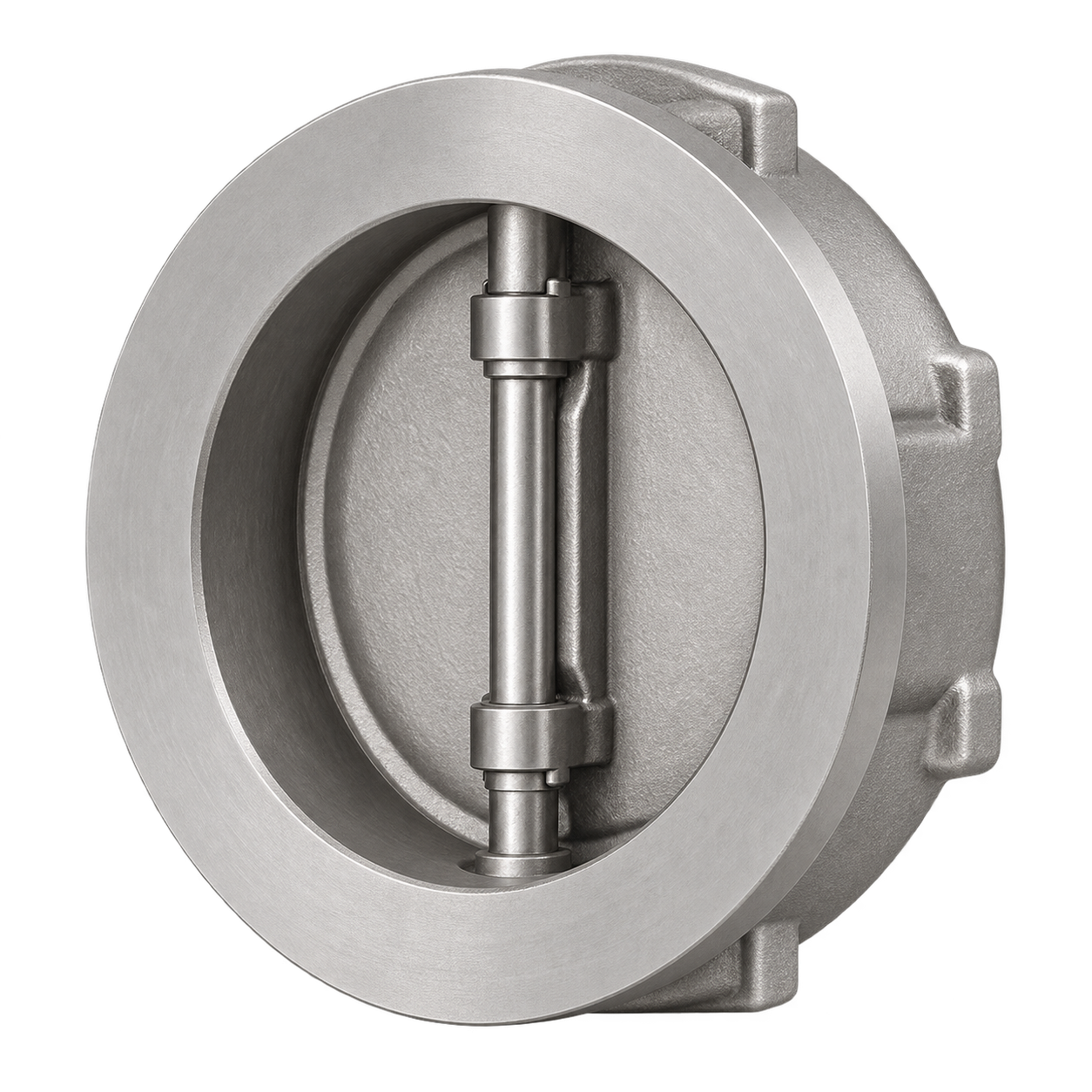

Wafer Check Valve Castings

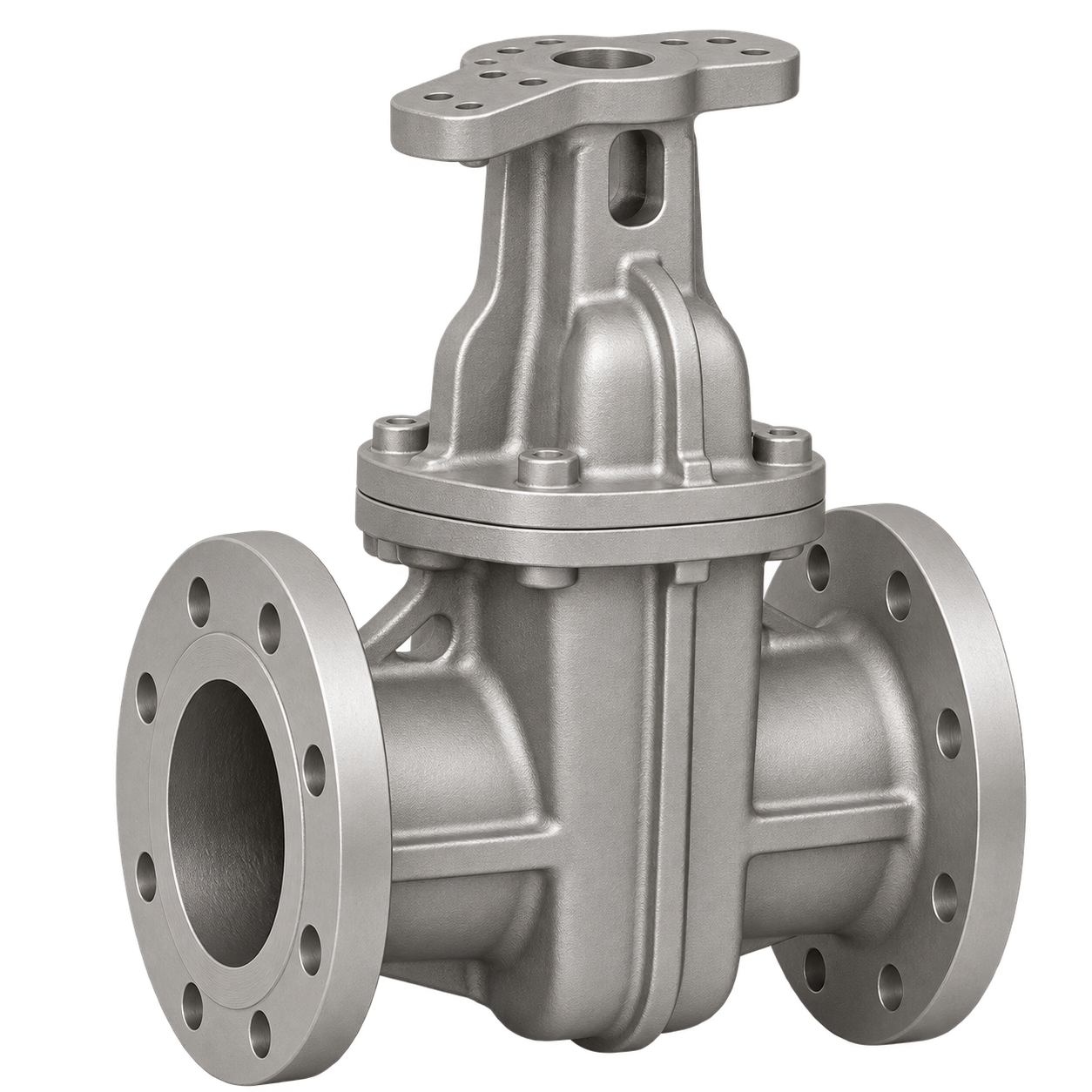

Flanged Gate Valve Castings

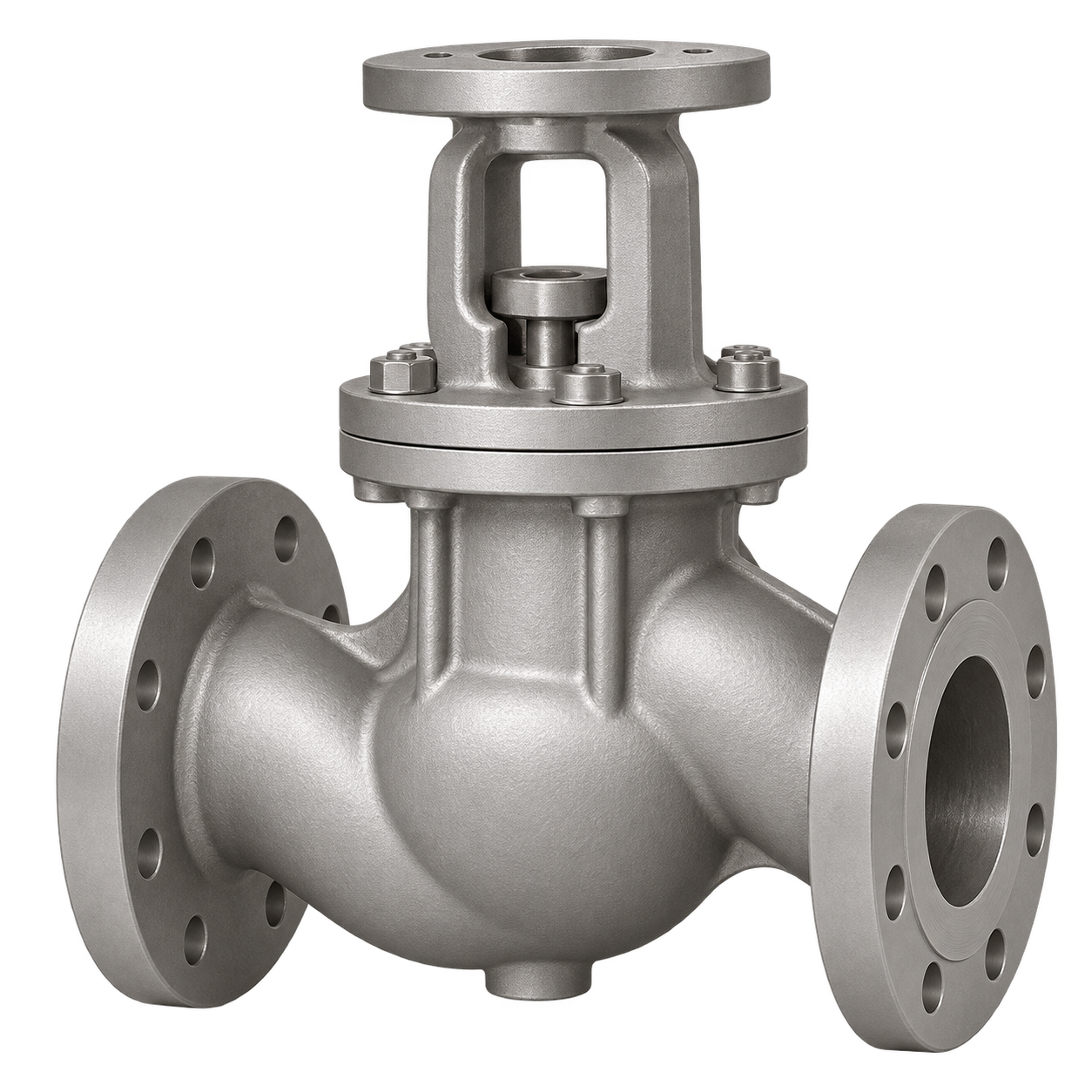

Flanged Globe Valve Castings
Pressure-Seal Valve Castings
Valve Bonnet Castings

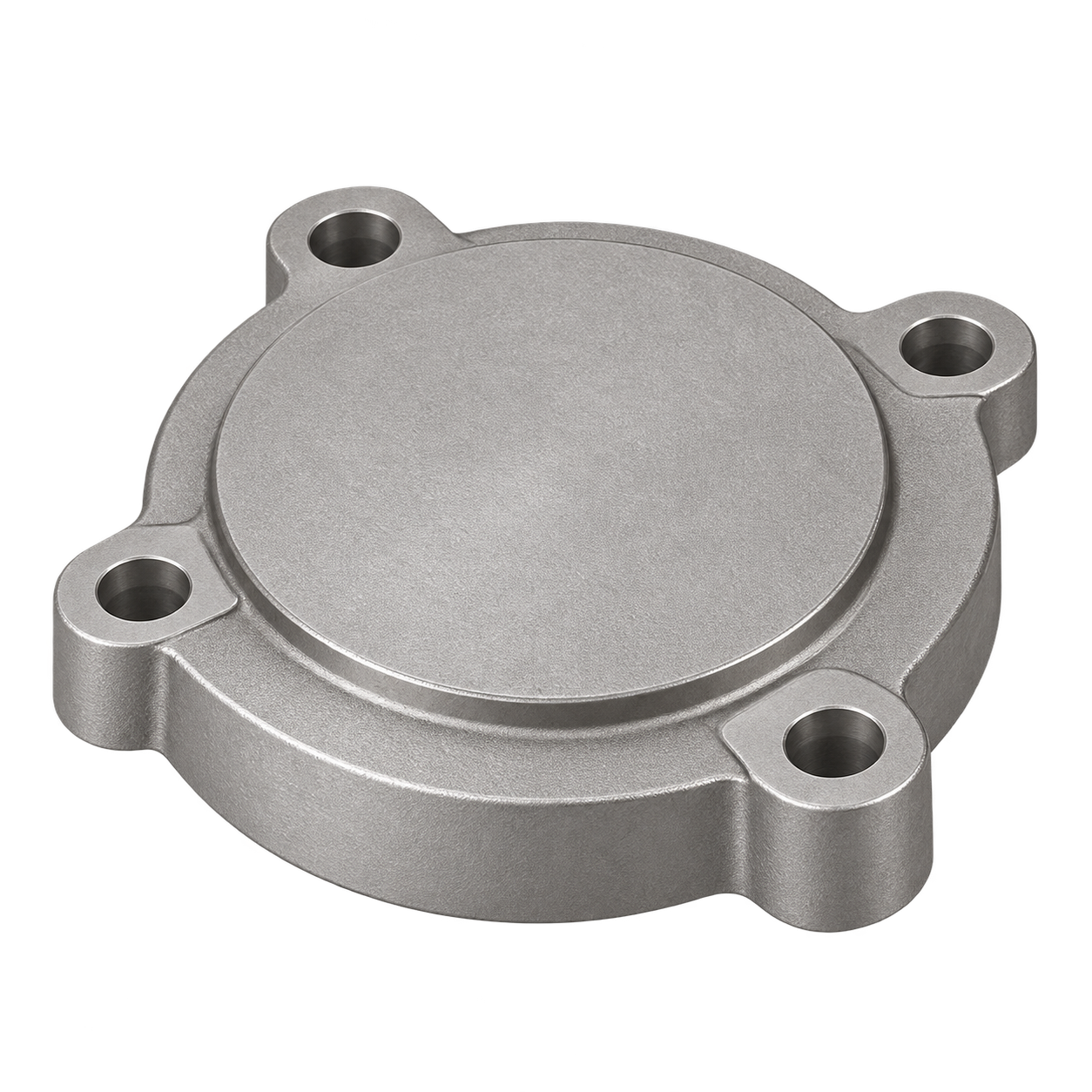

Valve Cover Castings

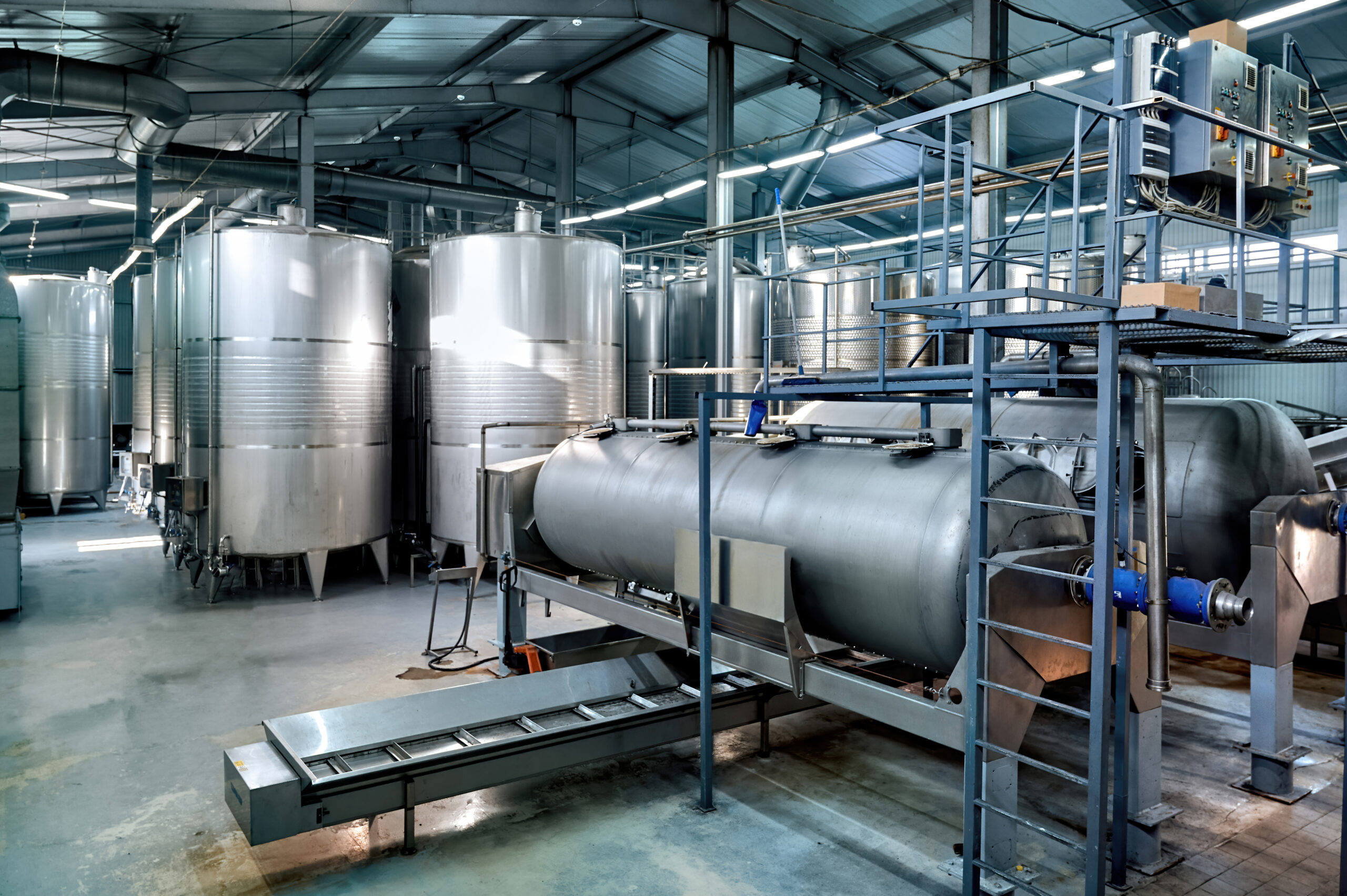

Industries We Serve with Butterfly Valve Castings
Why Investment Casting for Gate, Globe & Check Valve Components?
The intricate internal passages of flow-control valves are difficult to produce efficiently through machining alone. Investment casting solves this by reproducing complex features, ribs, bosses, and transitions directly within ceramic shell molds, delivering near-net-shape parts before final surface machining begins.
This near-net-shape approach provides design flexibility and minimizes excess material, which is especially beneficial when casting high-value stainless, duplex, or nickel alloys. Controlled process parameters ensure reliable repeatability across ongoing batch production.
Our Gate, Globe & Check Valve Casting Manufacturing Process
- Technical Review & Engineering Design
- Tooling Design & Manufacturing
- Wax Pattern Production & Assembly
- Ceramic Shell Building & Drying
- Dewaxing & Shell Firing
- Induction Melting & Composition Verification
- Metal Pouring & Solidification
- Shell Knockout & Casting Cut-Off
- Fettling & Grinding
- Heat & Surface Treatment
- Precision Machining
- Dimensional, NDT & Pressure Testing
Why Choose Rainbow Technocast as Your Gate, Globe & Check Valve Casting Manufacturer?
Global Quality Certifications
Certified with ISO 9001, ISO 14001, API 20-A, PED, and NORSOK M-650.
Integrated Production System
Full control from initial technical design analysis to melting and precision machining.
Stringent Hydrostatic Inspection
In-house NDT and hydro-pressure testing ensure robust pressure containment and reliability.
Exact Standards
Compliance
Thorough upfront engineering review guarantees complete alignment with customer specifications.
Frequently Asked Questions
Do you manufacture complete valves?
Rainbow Technocast’s core offering is investment casting and machining of engineered components. The manufacturing scope for a particular project is established from the customer’s component drawing and purchase specification.
Can gate, globe and check valve components be manufactured in stainless steel?
Yes. The company’s published material range includes multiple austenitic stainless, martensitic, duplex and super-duplex grades as well as carbon and low-alloy steels.
Can NDT be carried out on valve castings?
Yes. Available facilities include liquid penetrant testing, magnetic particle inspection and radiographic testing. The required NDT method and acceptance standard should be specified for the project.
Can pressure-containing components be tested for leakage?
Rainbow Technocast lists hydro-pressure testing equipment for pressurised components. Testing requirements should be defined in the customer’s technical specification.
Can you manufacture from a customer's existing tooling?
Existing tooling would first need to be evaluated for compatibility with the foundry’s pattern-making and process requirements. Where necessary, new tooling can be developed from the supplied component drawings or models.
Request a Quote for Gate, Globe & Check Valve Castings
Looking for an investment casting partner for a new or existing ball valve component?
Send us your technical drawing, required material, quantity, machining scope and inspection requirements.
Rainbow Technocast can review the component and develop a manufacturing route around your application.
