- Cam & Groove Fitting Castings
Precision Investment Castings for Camlock Couplings and Fittings
What Is Cam & Groove Fitting Casting?

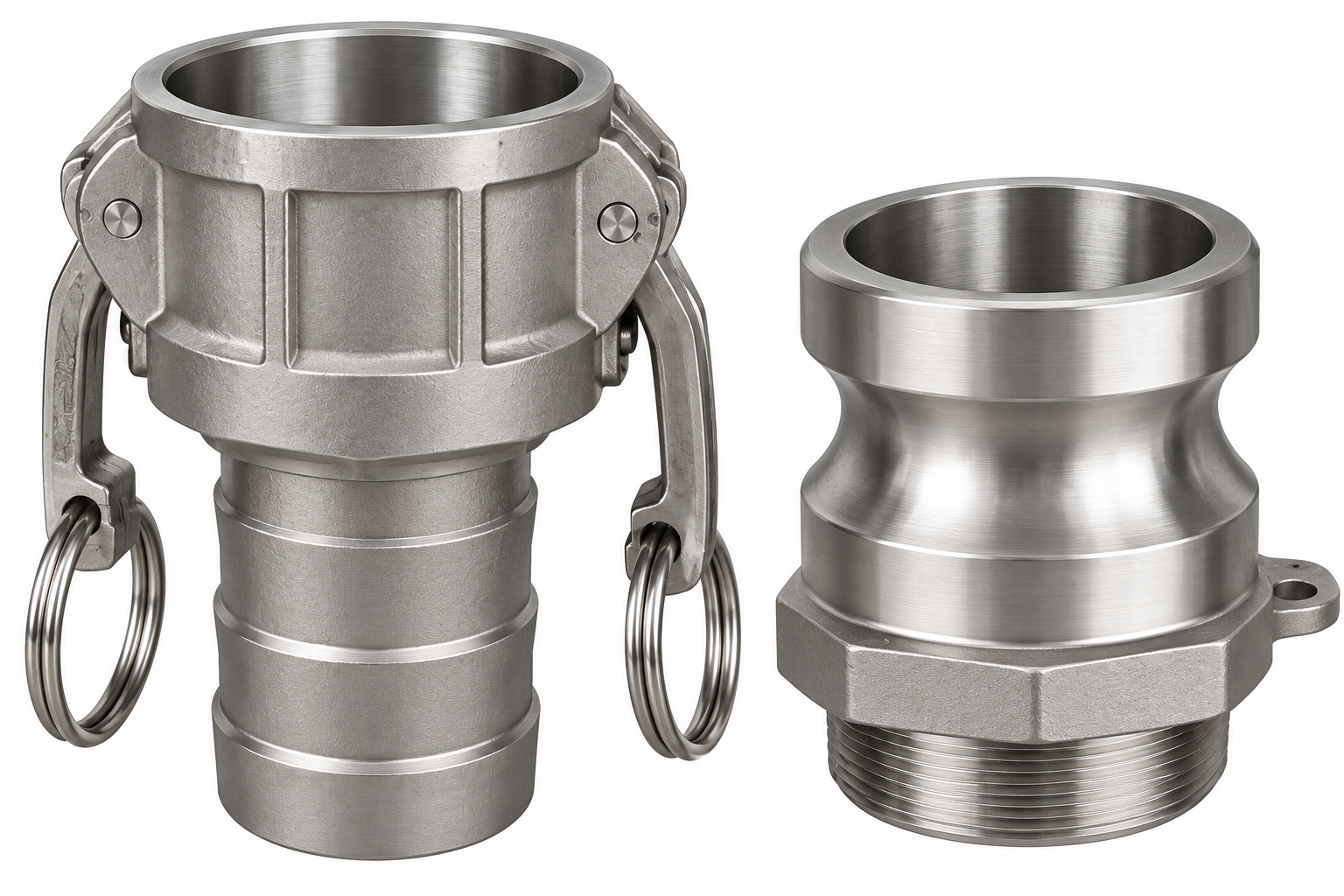

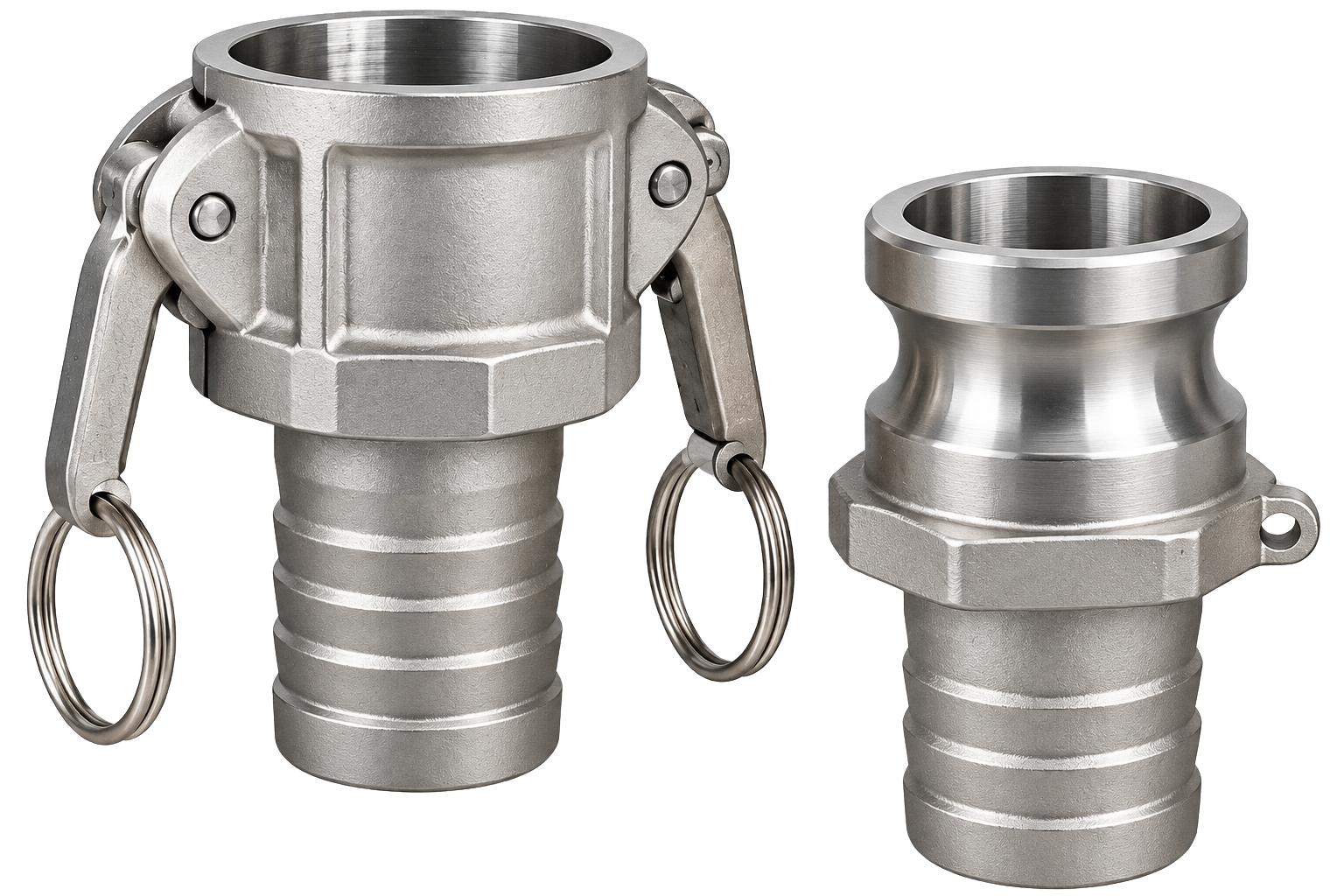

Cam and groove fittings (camlock couplings) facilitate rapid fluid-transfer connections using male adapters, female couplers, and cam arms. Mating parts must maintain consistent dimensions across body profiles, locking lugs, and sealing interfaces to prevent leakage.
Investment casting is well suited for camlock fittings because it accurately replicates curved profiles, arm lugs, and compact body geometry. Rainbow Technocast manufactures fittings according to customer requirements across various alloys suitable for industrial fluid service.
Our Cam & Groove Fitting Range / Types
- Type A Camlock Adapter
- Type B Camlock Coupler
- Type C Camlock Coupler
- Type D Camlock Coupler
- Type E Camlock Adapter
- Type F Camlock Adapter
- Threaded Camlock Fitting Castings
- Type DC Dust Cap
- Type DP Dust Plug
- Camlock Coupler Body Castings
- Camlock Adapter Castings
- Cam Arm Castings
- Hose-Shank Fitting Castings
Industries We Serve with Cam & Groove Fitting Castings
Why Investment Casting for Cam & Groove Fitting Components?
Camlock coupling bodies combine hose shanks or threaded ports with cam-arm lugs and internal sealing surfaces. Investment casting produces these detailed profiles directly from wax patterns, reducing material waste and eliminating multi-step machining setup times.
This near-net-shape capability accommodates a broad range of corrosion-resistant alloys for water, chemical, or petroleum transfer. Repeatable tooling ensures consistent coupling dimensions across ongoing high-volume production batches.
Our Cam & Groove Fitting Casting
Manufacturing Process
- Technical Drawing & Design Review
- Ceramic Shell Building & Drying
- Metal Pouring & Solidification
- Heat Treatment & Surface Finishing
- Tooling Design & Die Manufacturing
- Dewaxing & Shell Firing
- Shell Removal & Casting Cut-Off
- Precision Machining
- Wax Injection & Pattern Assembly
- Induction Melting & Chemical Verification
- Fettling & Grinding
- Dimensional & NDT Final Inspection
Why Choose Rainbow Technocast as Your Cam & Groove Fitting Casting Manufacturer?
In-House CNC
Machining
Combines dedicated investment casting with precision finishing under one single system.
Total Process
Control
Spans die creation, coating, dewaxing, melting, heat treatment, and surface finishing.
Guaranteed Alloy
Integrity
Rigorous chemical testing ensures robust corrosion resistance for fluid transfer systems.
Reliable Fitting Components
Produces highly repeatable camlock couplings engineered around customer specifications and drawings.
Frequently Asked Questions
What types of camlock fittings can be investment cast?
Common configurations include Types A, B, C, D, E and F as well as dust caps, dust plugs and related components. The actual manufacturing scope depends on the customer’s design.
Can stainless steel camlock fittings be produced?
Yes. Rainbow Technocast manufactures multiple stainless-steel grades. The required grade should be selected according to fluid compatibility, mechanical requirements and applicable standards.
Are threads cast or machined?
Critical threads are typically produced or finished through machining to achieve the specified profile and dimensional accuracy. The exact manufacturing route depends on the drawing.
Can custom cam-and-groove components be manufactured?
Yes. Components can be developed from customer drawings rather than being limited to standard catalogue geometries.
Can finished machined components be supplied?
Rainbow Technocast has in-house machining capabilities and can include machining in the manufacturing scope where required.
Request a Quote for Cam & Groove Fitting Castings
Send us your camlock component drawing, fitting type, dimensions, alloy, quantity and final machining requirements.
Rainbow Technocast can review your requirement and develop an appropriate investment casting route.
